Caleffi 546228A

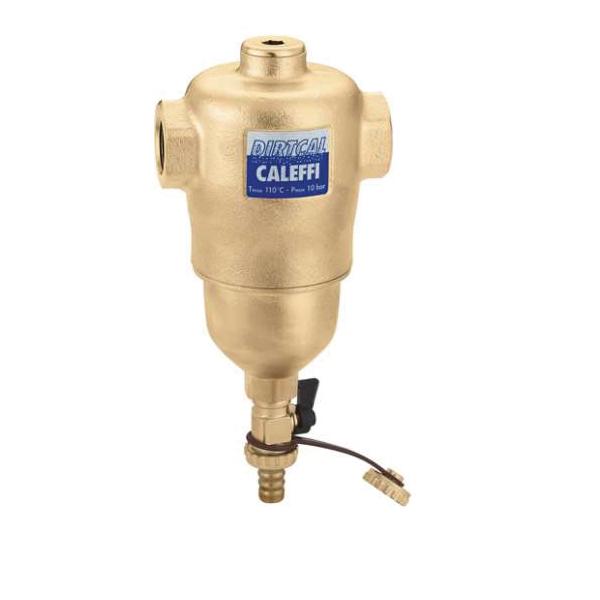

Caleffi Dirtcal 546228A Dirt Separator, 1 Inch, Sweat, 150 psi, 32 - 250 deg F,

Caleffi 546228A
Brand Name      :      Caleffi
Sub Brand      :      Dirtcal
Item Name      :      Dirt Separator
Series      :      546
Nominal Size      :      1 Inch
Connection Type      :      Sweat
Suitable Media      :      Water, Glycol Solution
Flow Rate      :      15.3 gpm
Maximum Percentage of Glycol      :      50%
Particle Separation Capacity      :      5 micro-m
Material      :      Brass
Pressure Rating      :      150 psi
Temperature Rating      :      32 - 250 deg F
Dimension      :      5-1/16 Inch Width x 8-1/4 Inch Height
  • In heating and air conditioning control systems, the circulation of water containing impurities may result in rapid wear and damage to components such as pumps and control valves
  • It also causes blockages in heat exchangers, heating elements and pipes, resulting in lower thermal efficiency within the system
  • The dirt separator separates off these dirt particles which are mainly made up of particles of sand and rust, collecting them in a large collection chamber, from which they can be removed even while the system is in operation
  • This device is capable of efficiently removing even the smallest particles, with very low head loss
  • The sweat connection product is available in versions for horizontal and vertical pipe installations
  • Stainless steel interior
  • Collects dirt particles as small as 5 microns
  • Even the smallest of particles pose a long term risk to the health and effectiveness of these systems
  • The caleffi dirtcal dirt separator controls this issue by automatically by forcing microparticles to the bottom of the unit where they can be safely discharged even while the system is operating
  • The dirtmag magnetic dirt separator removes both magnetic and non-magnetic particles continuously
  • Featuring a powerful removable external magnet around the body that removes up to 95% of the ferrous oxide particles that can form in a hydronic system
