Honeywell Home EARD8TZ/U

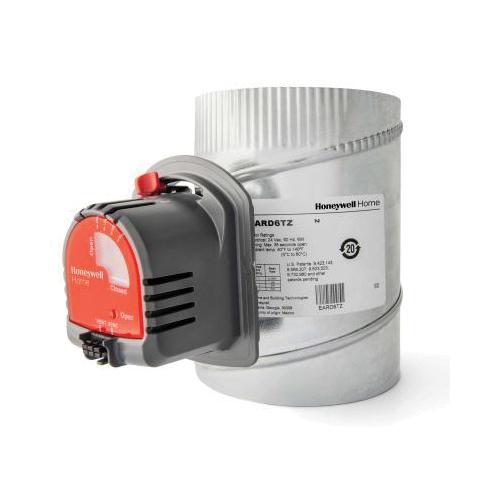

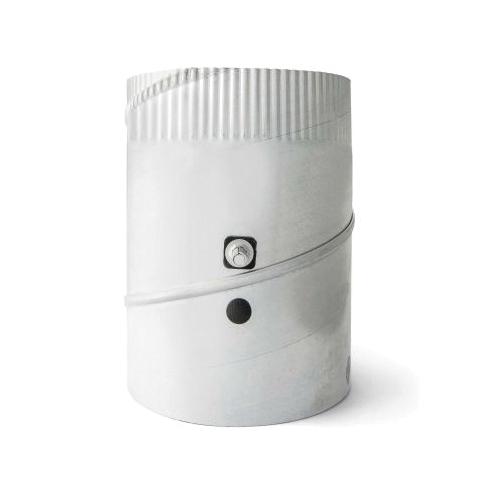

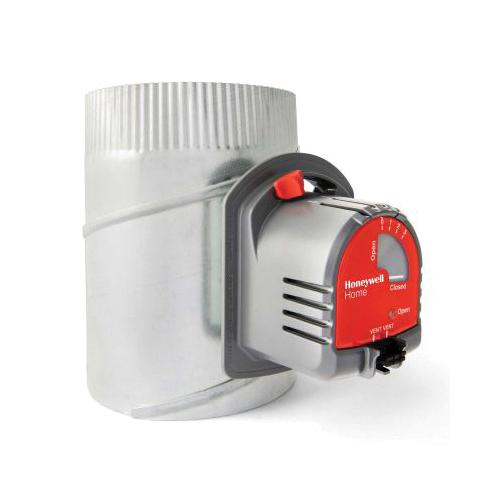

The EARD is a round damper with a 24 V powered open/spring closed motor. It is used for fresh air intake for ventilation or for combustion make-up air.
Honeywell Home Fresh Air Damper, Model: EARD, 8 in Diameter, 24 V, 60 Hz, VA Rating: 8 VA, M1/M6 Electrical Connection, 10 s, 30 s Timing, 71 in-oz Torque, 1 Blade, 0.0329 in-WC Pressure Drop, Steel, Finish: Galvanized, Side, Top Mounting, Power Open, Spring Closed Motor, Motor Specifications: 24 V, 60 Hz, 8 VA, Round Shape, 40 to 140 deg F, 3-61/64 in Length, 4-31/32 in Width, 4-41/64 in Height
| Model | : | EARD |
| Diameter | : | 8 in |
| Voltage Rating | : | 24 V |
| Frequency Rating | : | 60 Hz |
| VA Rating | : | 8 VA |
| Electrical Connection | : | M1/M6 |
| Timing Range | : | 10 s, 30 s |
| Torque Rating | : | 71 in-oz |
| Number of Blades | : | 1 |
| Pressure Drop | : | 0.0329 in-WC |
| Material | : | Steel |
| Finish | : | Galvanized |
| Mounting Type | : | Side, Top |
| Motor Type | : | Power Open, Spring Closed |
| Motor Specifications | : | 24 V, 60 Hz, 8 VA |
| Shape | : | Round |
| Temperature Rating | : | 40 to 140 deg F |
| Length | : | 3-61/64 in |
| Width | : | 4-31/32 in |
| Height | : | 4-41/64 in |
- Adjustable damper position range stops
- Shipped as power open/spring return closed damper
- Quiet operation
- Can be field converted to power closed/spring return open damper
- Blade closes off tightly against gasket for minimal leakage
- Male (crimped) and female (uncrimped) ends to connect to any rigid or flexible round duct
