        Packard PRCF40A
        Send Print
        1. pin-int

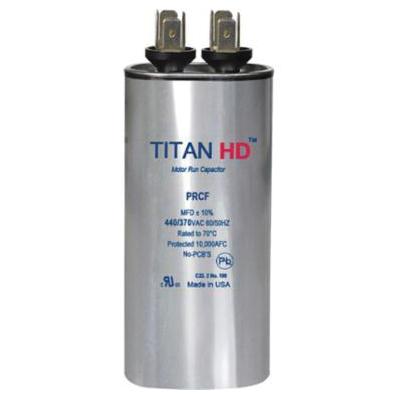

        Packard PRCF40A

        Packard PRCF Series PRCF40A Motor Single Run Capacitor, MFD Rating: 40 uF, 440 V

        Packard PRCF40A

        Packard Motor Single Run Capacitor, Series: PRCF Series, 40 uF MFD Rating, 440 VAC, 50/60 Hz, Round Shape, 60000 hr Average Life, +/-10 % Standard Tolerance, -40 to 70 deg C, Aluminum Case, 1-3/4 in Dia, 3-3/4 in Height

        Series      :      PRCF Series
        MFD Rating      :      40 uF
        Voltage Rating      :      440 VAC
        Frequency Rating      :      50/60 Hz
        Shape      :      Round
        Average Life      :      60000 hr
        Standard Tolerance      :      +/-10 %
        Temperature Rating      :      -40 to 70 deg C
        Case Material      :      Aluminum
        Diameter      :      1-3/4 in
        Height      :      3-3/4 in
        • Manufactured using state of the art, metalized polypropylene film technology for self-restoration in the event of a breakdown
        • Eye catching packaging for retail environment
        • Contains metalized polypropylene film technology for self-restoration in the event of a breakdown
        • Sophisticated UL approved pressure sensitive interrupter to remove the capacitor from circuit at end of life
        • Patented, environmentally friendly oil prevents corrosion and aids in optimum heat transfer
        • Aluminum cans filled with soybean based oil
        • Made in U.S.A
