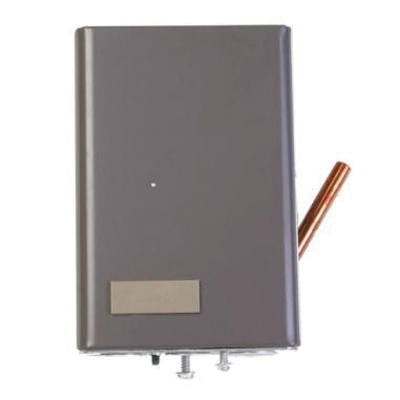

resideo L8148E1265/U

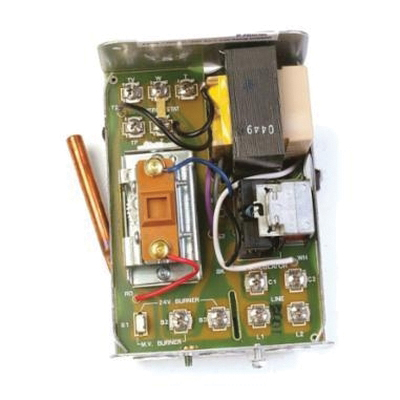

The L8148 aqua stat relays are immersion type hydronic controllers that combine high limit protection with switching relay control of burner and circulator motors.
resideo Aquastat Relay, 120 V, 60 Hz, 255 psi, Screw Quick-Connect Connection, SPST Switching Action, Vertical Mounting, Gray, 15 deg F Differential Temperature, 4.31 in L x 3.13 in W x 6.13 in H
| Voltage Rating | : | 120 V |
| Frequency Rating | : | 60 Hz |
| Pressure Rating | : | 255 psi |
| Connection Type | : | Screw Quick-Connect |
| Switching Action | : | SPST |
| Mounting Type | : | Vertical |
| Color | : | Gray |
| Differential Temperature | : | 15 deg F |
| Dimensions | : | 4.31 in L x 3.13 in W x 6.13 in H |
- Immersion-type controllers that combine high limit protection with switching relay control of burner and circulator motors
- High limit opens burner circuit only
- Require 24 VAC thermostat with heat anticipator set at 0.2 A (plus current draw of gas valve on L8124E)
- Includes molex plug for use with vent damper, includes heat-conductive compound
- 1-1/2 - 3 in D less well insulation
- Electrical burner rating: at full load: 0.8 A maximum at 24 VAC low voltage, 7.4 A at 120 VAC: 3.7 A at 240 VAC line voltage; at locked rotor: 44.4 A at 120 VAC: 22.7 A at 240 VAC line voltage; millivolt: 0.25 A at 1/4 - 12 VDC
- Electrical circulator rating: at full load: 7.4 A at 120 VAC, 3.7 A at 240 VAC; at locked rotor: 44.4 A at 120 VAC, 22.2 A at 240 VAC
- 0 - 95% RH non-condensing environmental conditions
Instruction/Installation Manual
