JB Industries CLS-72R
CLS series hoses feature a secure seal fitting that opens to full flow. The revolutionary patent pending design on our internal structure significantly reduces blowouts, provides maximum flow and automatically traps refrigerant discharge in the hose. The gasket features a hood with a straight edge that snaps into the straight edge of the barb. This straight edge to straight edge force eliminates gasket blowouts. The depressor is barbed and locks into the gasket, meaning the outward force on the depressor pushes the gasket further into place, resulting in no blowouts.

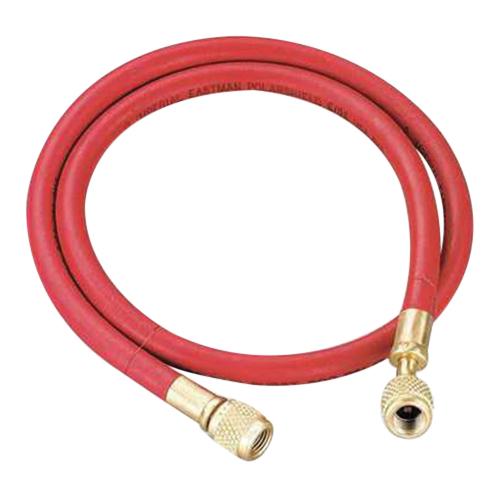

JB Industries Kobra® Refrigerant Charging Hose, CLS Series, 1/4 in Nominal, 800 lbf/sq-in, 72 in Length, Rubber, Red
| Series | : | CLS Series |
| Nominal Size | : | 1/4 in |
| Length | : | 72 in |
| Pressure Rating | : | 800 lbf/sq-in |
- 5 : 1 safety factor (beats industry standard of 4 : 1)
- Opens to full flow
- Stainless steel thrust washer insures free rotation even under high pressure
- Three point contact on depressor
- Use P90022 as replacement O-ring
- Use rebuild kit 33112RK
- Kobra high pressure hoses are made from Kevlar, the same material that stops bullets in bullet-proof vests
- Features nitrile cover which is better than neoprene because it is more resistant to oil, giving the hoses a longer life
- Compatible with R-410A refrigerant
- Automatically traps refrigerant
