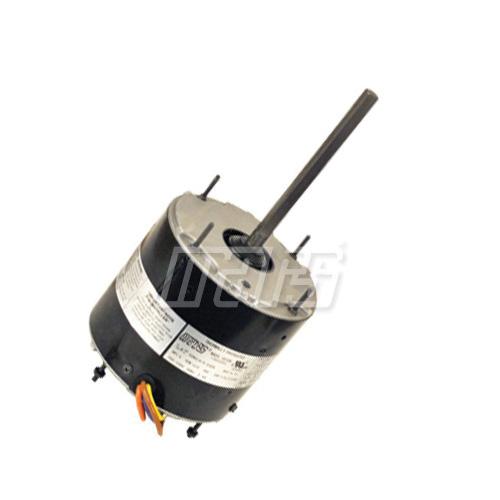

Mars® EL3730
Mars® all angle outdoor condenser fan motors are designed for either shaft-up or shaft-down applications. End shields are enclosed for weather protection. A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications.
Mars® Azure® High Heat Motor, 1/2 hp HP Rating, 208/230 V, 3.5 A, 60 Hz, 1 ph, 1075 rpm Speed Rating, 1 Speed, Totally Enclosed Air Over, 48 Frame, 1/2 in Dia x 6-1/2 in L Shaft, Ball Bearing, Band, Rheem® Hole, Thru-Bolt Mount, 60 deg C, Insulation Class: Class B, For Use With: Permanent Split Capacitor Condenser Fans
| Voltage Rating | : | 208/230 V |
| Amperage Rating | : | 3.5 A |
| HP Rating | : | 1/2 hp |
| Speed Rating | : | 1075 rpm |
| Phase | : | 1 ph |
| Frequency Rating | : | 60 Hz |
| Shaft Size | : | 1/2 in Dia x 6-1/2 in L |
| Number of Speeds | : | 1 |
| Bearing Type | : | Ball |
| Mounting Type | : | Band, Rheem® Hole, Thru-Bolt |
| Insulation Class | : | Class B |
| Temperature Rating | : | 60 deg C |
| Suitable For Use With | : | Permanent Split Capacitor Condenser Fans |
| Enclosure Type | : | Totally Enclosed Air Over |
| Frame | : | 48 |
- Rheem mounting holes with screws installed
- Water slinger on shaft
- Capacitor requirement noted on motor label
- Double full flatted shaft
- Thermal overload protected
- Fan duty, continuous, air over
- Totally enclosed
- 36 in leads
