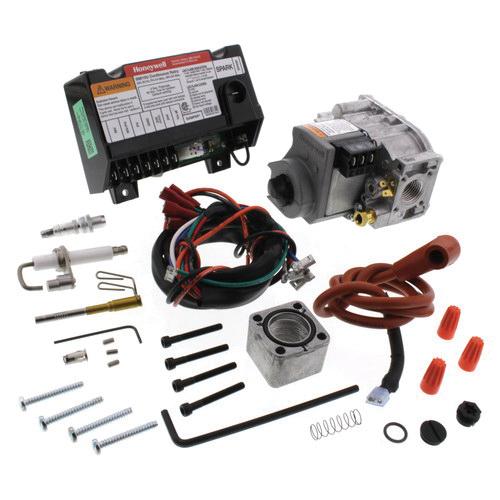

Honeywell Home Y8610U4001/U
Honeywell Pilot Retrofit Kit, Model: Y8610U, 24 V, 60 Hz Frequency, -40 to 165 deg F, Dimensions: 3-15/16 in H x 5-7/16 in W x 2-5/8 in D
| Model | : | Y8610U |
| Voltage Rating | : | 24 V |
| Frequency Rating | : | 60 Hz |
| Temperature Rating | : | -40 to 165 deg F |
| Dimensions | : | 3-15/16 in H x 5-7/16 in W x 2-5/8 in D |
- Intermittent pilot retrofit kits save energy by converting atmospheric standing pilot systems to intermittent pilot
- Use with natural or LP gas
- Provides 100% pilot gas shutoff if pilot fails to light, after 6 min delay, trial for ignition is repeated
- Ignition trail/delay sequence is repeated until the appliance lights or call for heat is removed
- 2 sec flame failure response time
- 0 or 30 sec pre-purge time
- Ignition sequence-continuous retry, after trial for ignition, pilot gas shuts off for 5 min then another trial for pilot ignition takes place
- Typical gas control-VR8204, VR8304
- Ignition source-internal high voltage spark generator
- Ignition trials to lockout-continuous retry
- 1 A pilot, 2 A at 24 VAC maximum valve load
- Q345, Q3451 typical ignition hardware
- 15 or 90 sec lockout timing and ignition trial time
- VR8204, VR8304 typical gas contro
