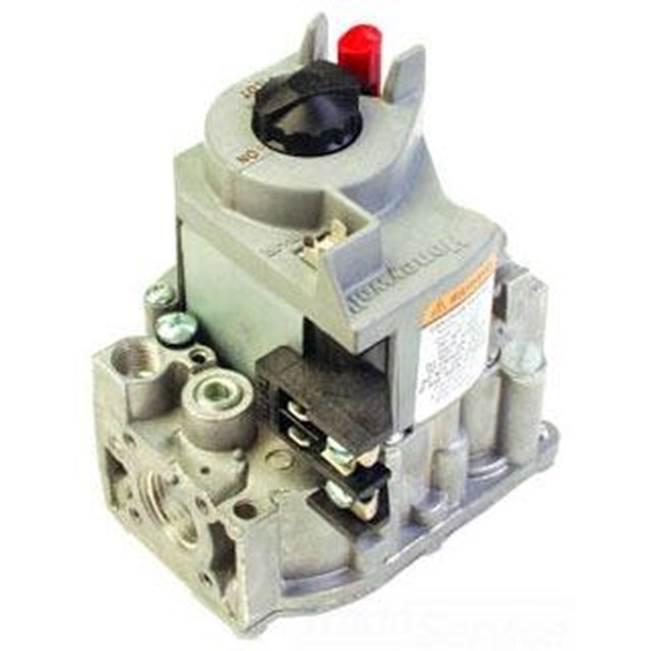

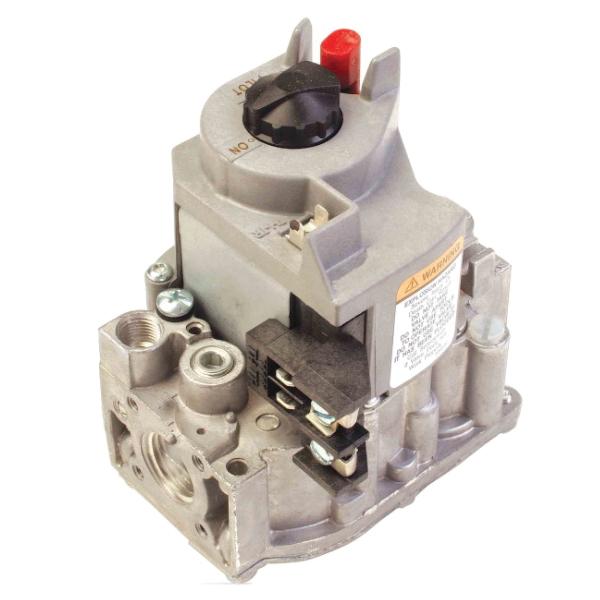

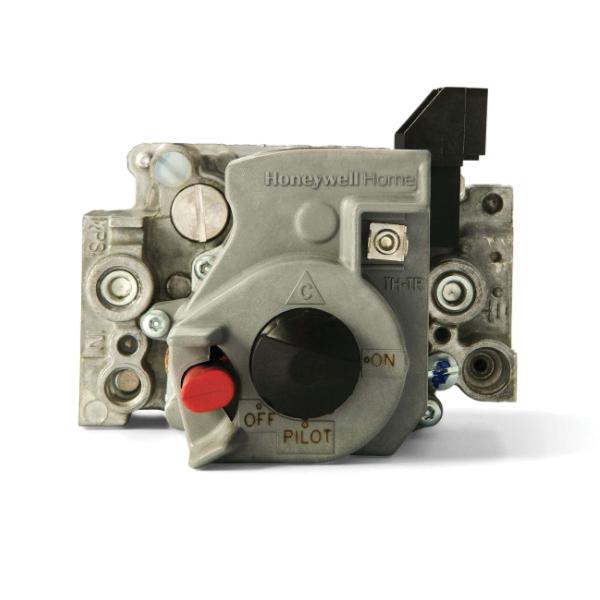

resideo VR8200H1251/U
These gas valves from resideo are for use in 24 VAC, gas-fired, standing pilot appliances with capacities from 20 to 200 cfh.
resideo Pilot Gas Valve, VR Series, 1/2 in Inlet, 1/2 in Outlet, NPT End, 20000 to 200000 Btu/hr Nominal Capacity, Liquid Propane, Natural Gas, Standing Pilot Ignition, 0.5 psi, 0 to 175 deg F, 24 VAC, 60 Hz, 1/4 in Quick-Connect Male Terminal Electrical Connection, 2-11/16 in Overall Length, 4.06 in Overall Width, 5.38 in Overall Height
| Series | : | VR Series |
| Inlet Size | : | 1/2 in |
| Outlet Size | : | 1/2 in |
| End Type | : | NPT |
| Nominal Capacity | : | 20000 to 200000 Btu/hr |
| Gas Type | : | Liquid Propane, Natural Gas |
| Ignition Type | : | Standing Pilot |
| Pressure Rating | : | 0.5 psi |
| Temperature Rating | : | 0 to 175 deg F |
| Voltage Rating | : | 24 VAC |
| Frequency Rating | : | 60 Hz |
| Electrical Connection | : | 1/4 in Quick-Connect Male Terminal |
| Overall Length | : | 2-11/16 in |
| Overall Width | : | 4.06 in |
| Overall Height | : | 5.38 in |
- Control includes safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment
- Compact size
- Provides two automatic valves
- Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
- Diaphragm operated second automatic valve opens under control of the regulator, closes if gas or power supply is interrupted
- Meets codes requiring dual safety shut-off
- Natural to LP and LP to natural conversion kits available for standard and slow opening gas valves
- All adjustments, wiring connections and pilot outlet are accessible from top of control
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
