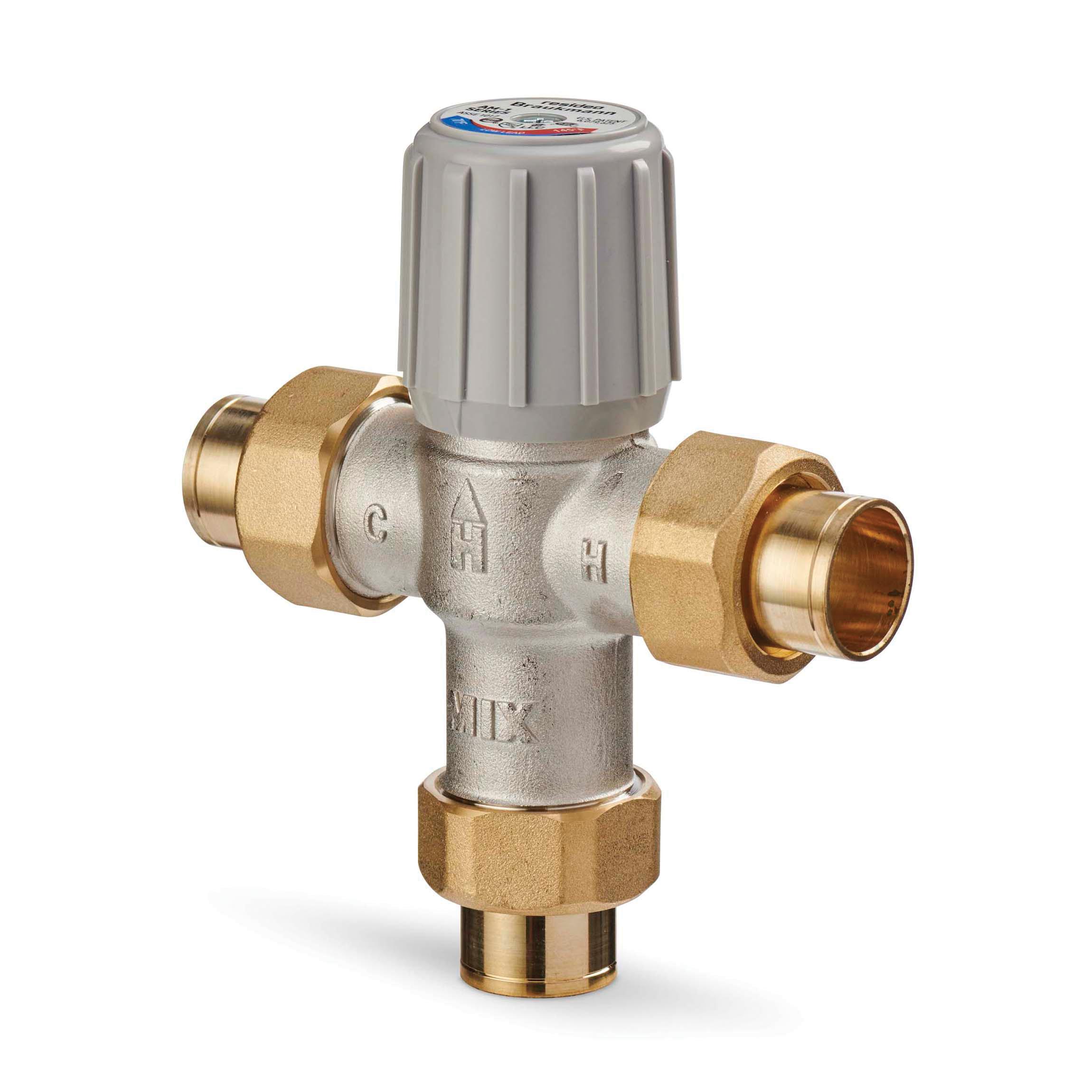

Honeywell Home AM101-US-1LF/U
AM-1 Series adjusts, maintains and limits the hot water temperature settings to provide comfort and protect equipment at home. While increasing the amount of safe, usable hot water, it efficiently offers anti-scald, anti-chill protection.
Honeywell Home Thermostatic Mixing Valve, AM1 Series, 3/4 in Nominal, C Connection, 150 psi, 0.5 gpm Flow Rate, Water Media, 4.9 in Inlet to Outlet Length, Brass Body, EPDM Seal, EPDM Packing, EPDM Softgoods, Finish: Nickle-Plated/PTFE-Coated, 70 to 145 deg F, 5.6 in H, Domestic/Import: Import, Additional Information: 3.9 Cv Flow Coefficient
| Series | : | AM1 Series |
| Nominal Size | : | 3/4 in |
| Connection Type | : | C |
| Pressure Rating | : | 150 psi |
| Flow Rate | : | 0.5 gpm |
| Media | : | Water |
| Inlet to Outlet Length | : | 4.9 in |
| Body Material | : | Brass |
| Seal Material | : | EPDM |
| Packing Material | : | EPDM |
| Softgoods Material | : | EPDM |
| Finish | : | Nickle-Plated/PTFE-Coated |
| Temperature Rating | : | 70 to 145 deg F |
| Dimensions | : | 5.6 in H |
| Domestic/Import | : | Import |
| Additional Information | : | 3.9 Cv Flow Coefficient |
- Features dual-purpose mixing or diverting values
- Offers constant water temperature under changing operating conditions
- Temperature is limited at any point and if cold-water supply is interrupted, flow reduction occurs in seconds
- Provides reliable performance at minimum flow of 0.5 gpm and proportional valve for simultaneous control of hot and cold
- Designed for easy maintenance and PTFE-coating prevents mineral build-up and extends life
- Lead-free products have products numbers end in LF
- Temperature gauge adapter in lead-free brass material with EPDM O-ring
- Low-lead content <0.25% by weighted average
