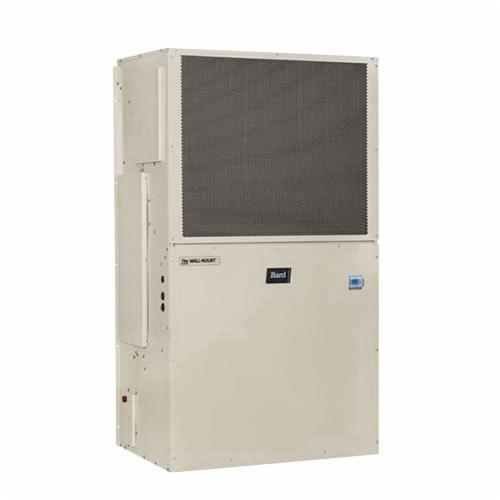

Bard® Fusion-Tec Package Air Conditioner with Circuit Breaker, Series: HR, HR35BPA Model, 3 ton Nominal, 35000 Btu/hr Cooling BTU Rating, 208 - 230 VAC, 30 A, 5 kW Electric Heat Strip, 60 Hz, 1 -Phase, Scroll Compressor, R-410A Refrigerant, Wall Mounting, 16 x 25 x 1 in Filter, 35 A Fuse, Baked Enamel, Beige, 36.86 in W x 71.61 in H x 27.33 in D
Series
:
HR
Model
:
HR35BPA
Cooling BTU Rating
:
35000 Btu/hr
Nominal Capacity
:
3 ton
Voltage Rating
:
208 - 230 VAC
Amperage Rating
:
30 A
Refrigerant Type
:
R-410A
Mounting Type
:
Wall
Wattage
:
5 kW Electric Heat Strip
Frequency Rating
:
60 Hz
Phase
:
1
Compressor Type
:
Scroll
Fuse Rating
:
35 A
Finish
:
Baked Enamel
Color
:
Beige
Dimensions
:
36.86 in W x 71.61 in H x 27.33 in D
Revision level (B)
Programmable logic board control logic and climate
Standard accessories including air flow sensor, dirty filter sensor, pressure transducers, crankcase heater
The Fusion-Tec has been designed specifically to optimize free cooling opportunities
Reverse air flow - peak performance low side air discharge directs the cooler air used for electronics and equipment cooling at floor level where it is needed
Free cooling unit - all units are designed to optimize any free cooling outdoor air opportunities
Logic board - system control panels are equipped with PLC logic boards that allow multiple unit operation with a one-controller
Advanced unit diagnostics - whether connected to the Tec-Eye diagnostic tool, or just viewed from the shelter control, the system PLC logic board is able to display stored alarms and easy to read diagnostic information
Orphan mode - system is designed to run independently if communication to the LV controller is lost, meaning that cooling can be provided even if the controller or wiring fails
Air flow switch: all systems feature an air flow switch to monitor blower operation, settings are field adjustable with alarm signal
Dirty filter switch - all systems include an air flow switch to monitor pressure drop across the unit filter
High pressure transducer - a high pressure transducer is used for advanced diagnostic features including an alarm signal when condenser coil cleaning is needed
Low pressure transducer - a pressure transducer is used for advanced diagnostic features and indication of refrigerant loss
Security features - by selecting the BardGuard option, electronic security features allow the system to sense coil and copper theft and features multiple alarm options, an in-shelter disarm button allows authorized personnel to service the system
