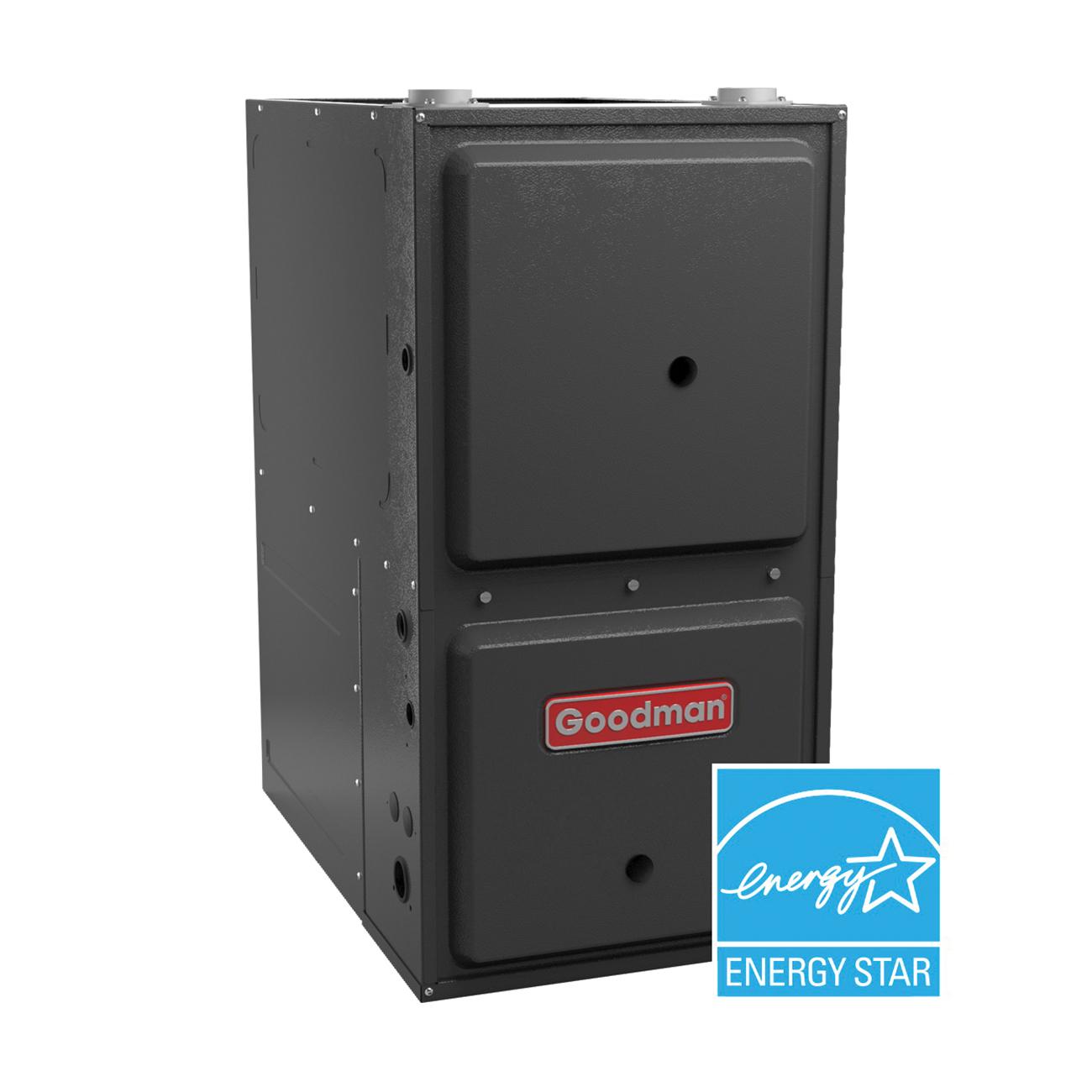

Goodman® GCVC960804CN
Goodman® Gas Furnace, GCVC96 Model, 80000 Btu/hr Input BTU Rating, 115 VAC, 10.6 A, 1600 cu-ft/min, 3/4 hp at 1075 rev/min, 96% AFUE, 1 -Phase, 60 Hz, Configuration: Downflow/Horizontal, 1/2 in FPT Connection, Natural Gas Fuel, 4 -Burner, 10 in W x 11 in Dia Blower Size, 21 in W x 34-1/2 in H x 28-3/4 in D Cabinet Dimensions, 2 - 3 in Dia Vent, 4 ton, Aluminized Steel or Stainless Steel Heat Exchanger, 25 - 55 deg F Rise
| Model | : | GCVC96 |
| Tonnage | : | 4 ton |
| Voltage Rating | : | 115 VAC |
| Amperage Rating | : | 10.6 A |
| Configuration | : | Downflow/Horizontal |
| AFUE Rating | : | 96 % |
| CFM Rating | : | 1600 cfm |
| HP Rating | : | 3/4 hp at 1075 rpm |
| Input BTU Rating | : | 80000 Btu/hr |
| Frequency Rating | : | 60 Hz |
| Phase | : | 1 ph |
| Connection Type | : | 1/2 in FPT |
| Material | : | Aluminized Steel or Stainless Steel Heat Exchanger |
- ComfortNet communicating systems compatible
- Two stage gas valve provides quiet, economical heating
- Durable silicon nitride igniter
- Quiet two speed induced draft blower
- Utilizes ComfortNet communicating, two-stage or one-stage thermostats
- Self diagnostic control board with constant memory fault code history output to a dual seven segment display
- Color-coded low voltage terminals with provisions for electronic air cleaners and humidifiers
- Efficient and quiet variable-speed airflow system gently ramps up or down according to heating or cooling demand
- Multiple continuous fan speed options offer quiet air circulation
- Auto comfort and enhanced dehumidification modes available
- Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
- Easy to install top venting with optional side venting
- Convenient left/right connection for gas and electrical service
- Cabinet air leakage (QLeak) less than or equal to 2%
- Fully insulated heat exchanger and blower section
- Airtight solid bottom for side return with easy cut tabs for effortless removal in bottom air inlet applications
