        Taco Comfort Solutions® 400-4
        Send Print
        1. pin-int
        Taco Comfort Solutions® 400-4

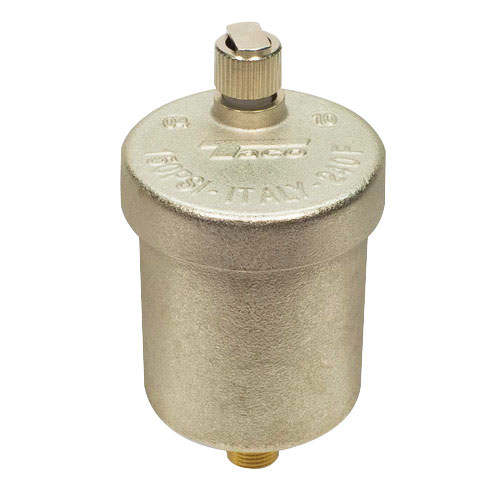

        Taco Comfort Solutions® Hy-Vent 400-4 Air Vent, 1/8 in, MNPT, Brass

        Taco Comfort Solutions® 400-4

        Taco Comfort Solutions® Hy-Vent Air Vent, 1/8 in Nominal, MNPT Connection, 150 psi, 140 to 240 deg F, Brass, 3-3/4 in H x 2 in W x 2 in D

        Nominal Size      :      1/8 in
        Connection Type      :      MNPT
        Pressure Rating      :      150 psi
        Temperature Rating      :      140 to 240 deg F
        Material      :      Brass
        Dimensions      :      3-3/4 in H x 2 in W x 2 in D
        • Taco Hy-vent air vents are simple, easy-to-use and install and compatible with any heating system
        • For best performance, use them in combination with taco air scoops, which feature a 1/8 in outlet on top
        • The vents are easily serviceable by just unscrewing the vent cap
        • The high capacity, float-style vent can be placed either on the boiler or at the high points throughout the system
        • Automatically purges unwanted air from the hydronic installation to help improve system efficiency
        • Attaches to the boiler or it can be used throughout the system
        • 50 psi maximum discharge pressure
        • Non adjustable, straight-mount, bubble breaker, float-style
        • For use with hydronic heating systems
