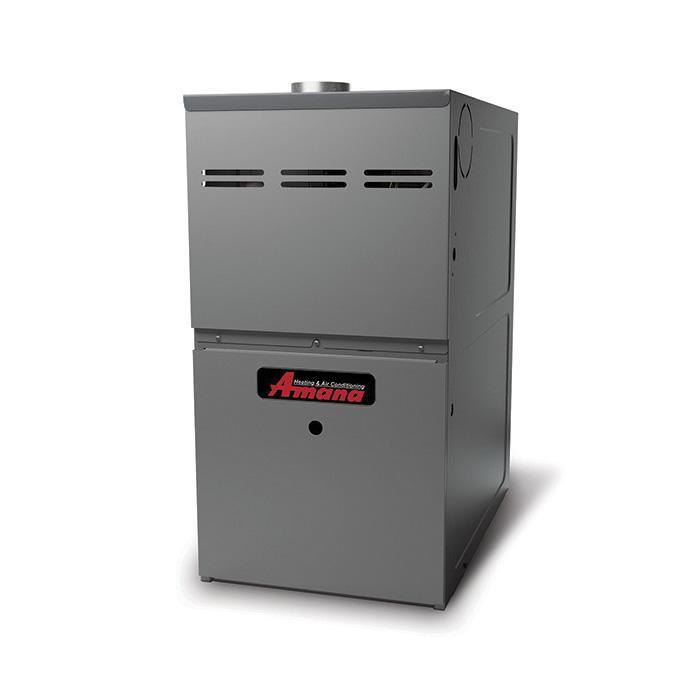

Amana® AMVC800803BN
Amana® Gas Furnace, Model: AMVC80, 80000 Btu/hr Input BTU Rating, 115 VAC, 7.75 to 15 A, 1200 cfm Rating, 1/2 hp, 80 % AFUE Rating, 1 ph, 60 Hz, 2 Stages, Upflow, Horizontal, FNPT Connection, 1/2 in Connection, Natural Gas Fuel, 4 Burners, 8 in W x 10 in D Blower, 33-3/8 in H x 17-1/2 in W x 28 in D Cabinet Dimensions, Variable Speed ECM Motor, Vent, Ducted or Ductless, 4 in Dia Vent, 3 ton, Ignition System: SureStart® Silicon Nitride, Steel, Durable Baked Enamel, 30 to 60 deg F, 35 to 65 deg F Temperature Rise
| Model | : | AMVC80 |
| Tonnage | : | 3 ton |
| Voltage Rating | : | 115 VAC |
| Amperage Rating | : | 7.75 to 15 A |
| Configuration | : | Upflow, Horizontal |
| AFUE Rating | : | 80 % |
| CFM Rating | : | 1200 cfm |
| HP Rating | : | 1/2 hp |
| Input BTU Rating | : | 80000 Btu/hr |
| Frequency Rating | : | 60 Hz |
| Phase | : | 1 ph |
| Number of Stages | : | 2 |
| Connection Type | : | FNPT |
| Motor Type | : | Variable Speed ECM |
| Material | : | Steel |
| Finish | : | Durable Baked Enamel |
- Integrated communicating ComfortBridge™ technology
- Quiet comfort
- Energy efficiency
- The CoolCloud™ HVAC app - enables qualified technicians to connect, configure and diagnose select HVAC systems quickly and accurately
- Quiet, two speed induced draft blower
- Self-diagnostic control board with constant memory
- Low constant fan speed circulates air throughout the home
- Fully insulated heavy gauge steel cabinet with durable finish
- Thermally insulated cabinet
