        DAIKIN RZQ36TAVJUA
        Send Print
        1. pin-int
        DAIKIN RZQ36TAVJUA

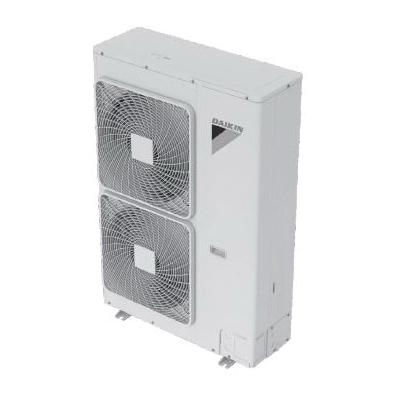

        DAIKIN RZQ_TAVJU Series RZQ36TAVJUA Heat Pump Condenser, 208/230 V, 29.1 A, 3600

        DAIKIN RZQ36TAVJUA

        DAIKIN heat pump sky air system provides comfortable heating and cooling in a one to one application. With the ability to combine a quiet outdoor unit with a variety of sleek indoor units such as the easily installed wall mounted unit, the concealed, built-in DC duct unit, the comfort customizing round flow sensing ceiling mounted cassette, a multi-positional air handler or the slim, silent operating ceiling suspended unit, DAIKIN provides the ultimate duct-free solution for large residential or light commercial projects.

        DAIKIN Heat Pump Condenser, RZQ_TAVJU Series, 208/230 V, 29.1 A, 60 Hz Frequency, 1 ph, Heating BTU Rating: 40000 Btu/hr, Cooling BTU Rating: 36000 Btu/hr, Heating CFM Rating: 3741 cfm, 11.4 EER, 17.6 SEER, 9 HSPF, Hermetically Sealed Swing Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 5/8 in Suction Line, Tonnage: 3 ton, Heating Sound Level: 57 dBA, Cooling Sound Level: 57 dBA, Ivory White, Heating Operating Temperature: -4 to 60 deg F, Cooling Operating Temperature: 23 to 122 deg F, 12-5/8 in Overall Length, 35-7/16 in Overall Width, 52-15/16 in Overall Height, Additional Information: 19 FPI, 12.2 sq-ft Face Area

        Series      :      RZQ_TAVJU Series
        SEER Rating      :      17.6
        Cooling BTU Rating      :      36000 Btu/hr
        Tonnage      :      3 ton
        HSPF Rating      :      9
        Voltage Rating      :      208/230 V
        Amperage Rating      :      29.1 A
        Refrigerant Type      :      R-410A
        EER Rating      :      11.4
        Frequency Rating      :      60 Hz
        Phase      :      1 ph
        Compressor Type      :      Hermetically Sealed Swing
        Liquid Line Size      :      3/8 in
        Suction Line Size      :      5/8 in
        Color      :      Ivory White
        Additional Information      :      19 FPI, 12.2 sq-ft Face Area
        Overall Width      :      35-7/16 in
        Overall Height      :      52-15/16 in
        Cooling Sound Level      :      57 dBA
        • Energy-Intelligent™ technology with variable speed compressors for small offices, shops, retail stores, restaurants, banks or technical cooling
