        Packard A225
        Send Print
        1. pin-int
        Packard A225

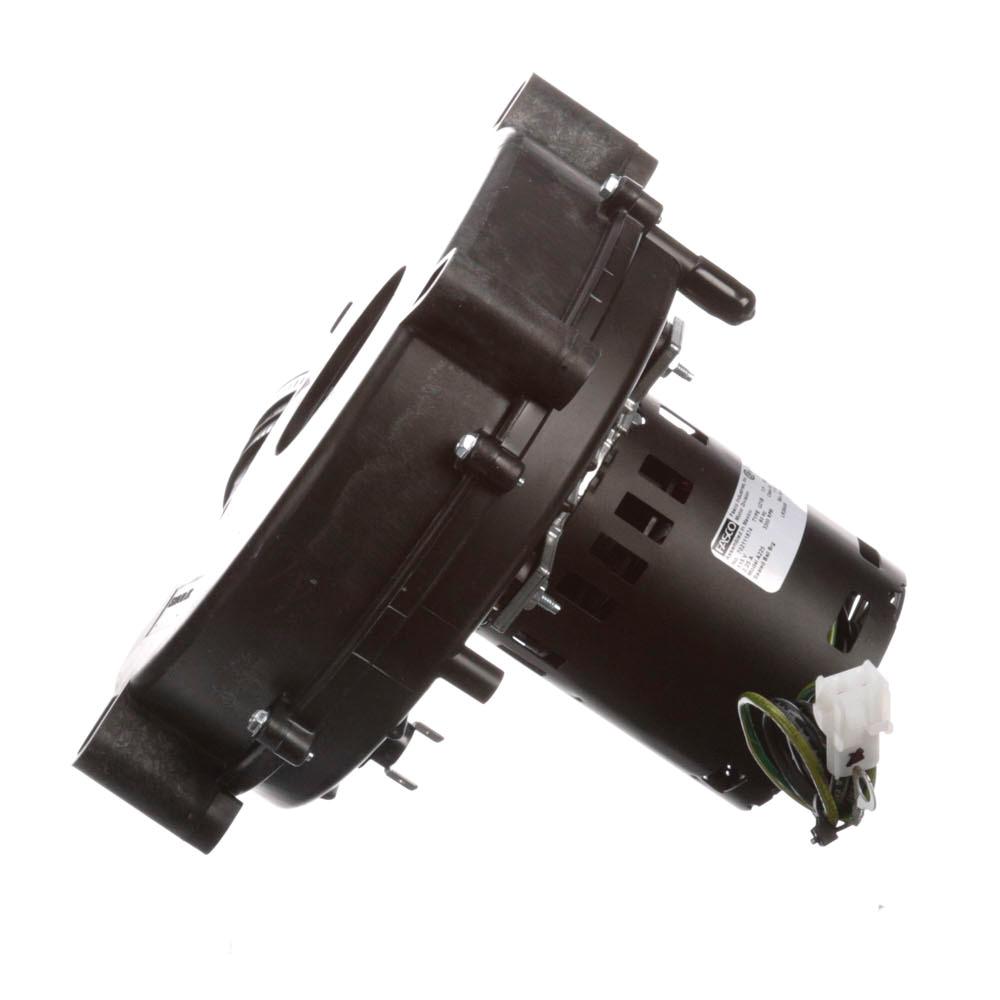

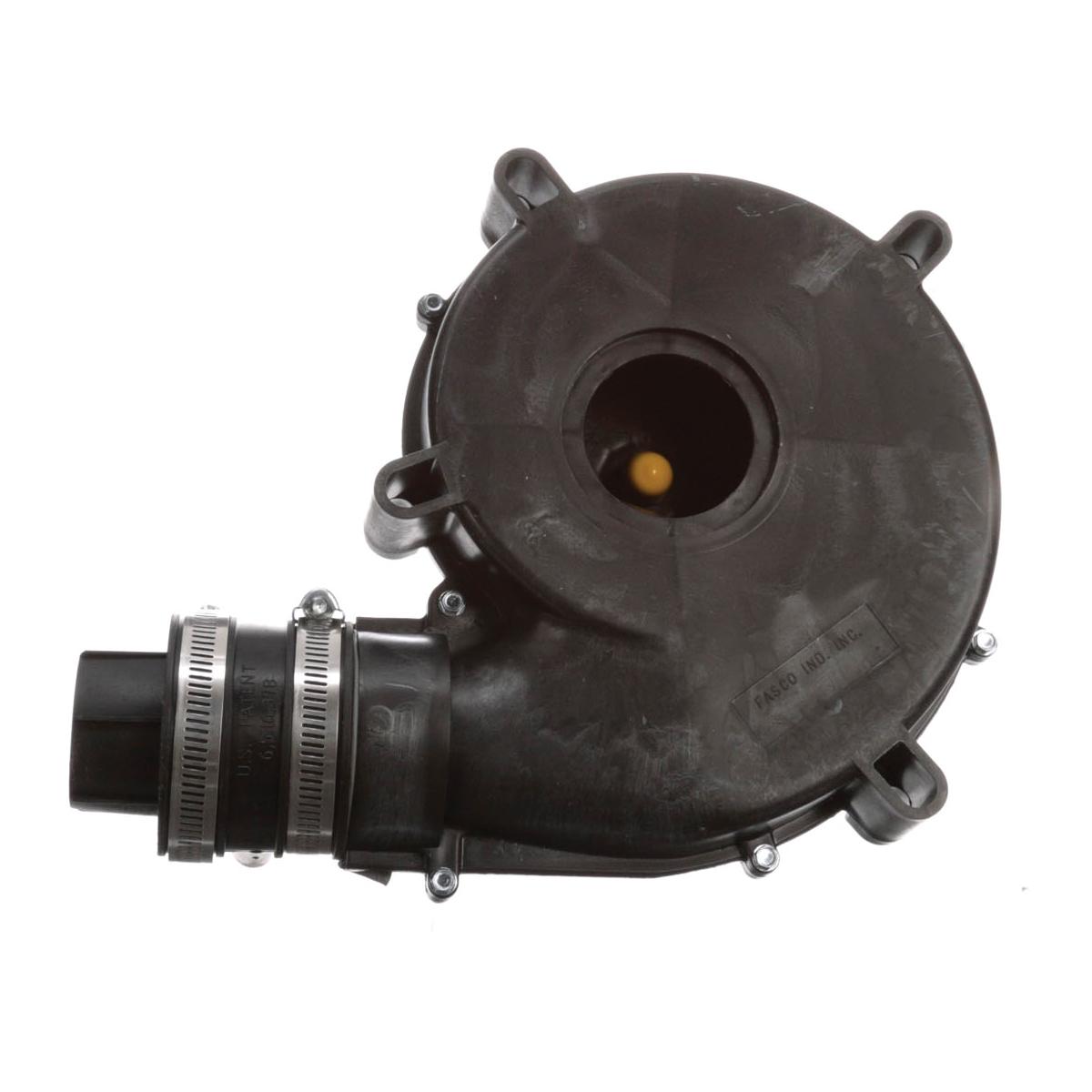

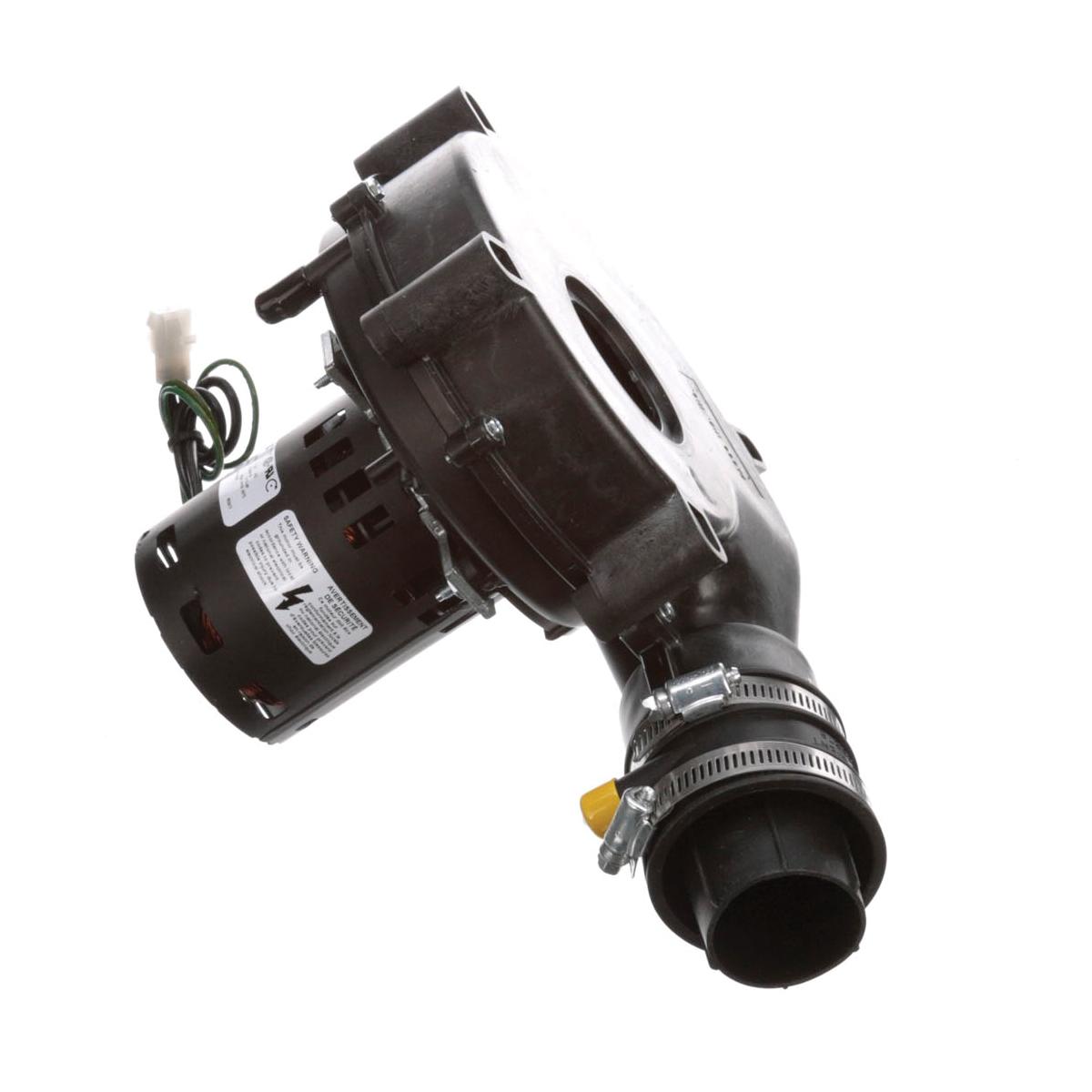

        Packard A225 Replacement Draft Inducer Blower, 115 V, 2.25 A, 1/15 hp, 3200 rpm

        Packard A225

        Packard Replacement Draft Inducer Blower, 2.25 A, 115 V, 60 Hz, 1 ph Phase, 1/15 hp, 3200 rpm, Ball Bearing, 1 Speed, Open Enclosure, B Insulation Class, 40 deg C, 3.3 in Dia, Additional Information: Shaded Pole Motor

        Amperage Rating      :      2.25 A
        Voltage Rating      :      115 V
        Frequency Rating      :      60 Hz
        Phase      :      1 ph
        HP Rating      :      1/15 hp
        Speed Rating      :      3200 rpm
        Bearing Type      :      Ball
        Number of Speeds      :      1
        Enclosure Type      :      Open
        Insulation Class      :      B
        Temperature Rating      :      40 deg C
        Dimensions      :      3.3 in Dia
        Additional Information      :      Shaded Pole Motor
        • OEM direct replacement - draft inducer blower
        • Thermally protected
        • 8 in leads with socket terminal
        • Direct replacement for Fasco 7021-11577/7021-11577S, AllTemp FB-RFB225, Industry No. 702111577, York 024-34558-000/17503/7021-11577/7021-115775/7021-11577S/7021-11830, Rotom FB-RFB225 blowers
