11EER Energy efficient and built to last, the 1-stage WALL-MOUNT™ AC Units offer balanced climate for maximum indoor comfort at a minimal cost. Designed for a variety of applications, these AC units also provide quiet operation. Factory or field installed accessories are available to meet specific job requirements.

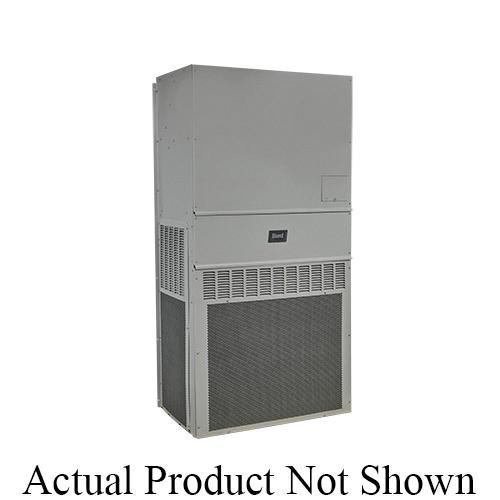

Bard® WALL-MOUNT™ Air Conditioner, 42 in W x 25.52 in D x 93 in H, Series: WA Series, W60AC-A Model, 5 ton Nominal, 57000 Btu/hr Cooling BTU Rating, 208/230 V, 20.6/23.6 A, 5 kW Wattage, 3/4 hp at Blower, 1/3 hp at Fan HP Rating, 825 rpm Rotational Speed, 60 Hz Frequency, 1 ph, Scroll Compressor, 11 EER, 5 Speed,1 Stage, R-410A Refrigerant, 56.5 dBA at 5 ft Indoor, 66.8 dBA at 10 ft Outdoor Sound Level, Wall Mounting, Constant Torque ECM Motor, (2) 20 x 20 x 2 in Filter, 50 A Fuse, 1750 cfm at Blower/3100 cfm at Fan Flow Rate, Standard Control, Steel, Baked Enamel/Painted, Beige
| Series | : | WA Series |
| Model | : | W60AC-A |
| Cooling BTU Rating | : | 57000 Btu/hr |
| Nominal Capacity | : | 5 ton |
| Voltage Rating | : | 208/230 V |
| Amperage Rating | : | 20.6/23.6 A |
| Refrigerant Type | : | R-410A |
| Mounting Type | : | Wall |
| Wattage | : | 5 kW |
| HP Rating | : | 3/4 hp at Blower, 1/3 hp at Fan |
| Rotational Speed | : | 825 rpm |
| Frequency Rating | : | 60 Hz |
| Phase | : | 1 ph |
| Compressor Type | : | Scroll |
| Sound Level | : | 56.5 dBA at 5 ft Indoor, 66.8 dBA at 10 ft Outdoor |
| EER Rating | : | 11 |
| Number of Stages | : | 1 |
| Fuse Rating | : | 50 A |
| Flow Rate | : | 1750 cfm at Blower/3100 cfm at Fan |
| Motor Type | : | Constant Torque ECM |
| Material | : | Steel |
| Finish | : | Baked Enamel/Painted |
| Color | : | Beige |
| Dimensions | : | 42 in W x 25.52 in D x 93 in H |
| Domestic/Import | : | Domestic |
- Copeland® scroll compressor
- EC brushless constant torque indoor blower motor
- Balanced climate
- Natural fiber non-fiberglass insulation
- Hydrophilic aluminum finned copper evaporator coil
- Front access control compartment
- Factory installed electric heat
- Standard fresh air damper
- 2 in MERV 8 disposable filter
- Standard copper/aluminum coils
