        MODINE HD 100AS0111FDAN

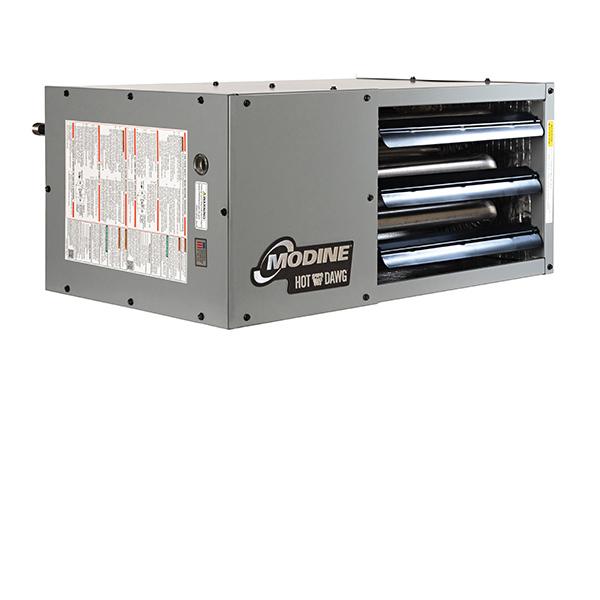

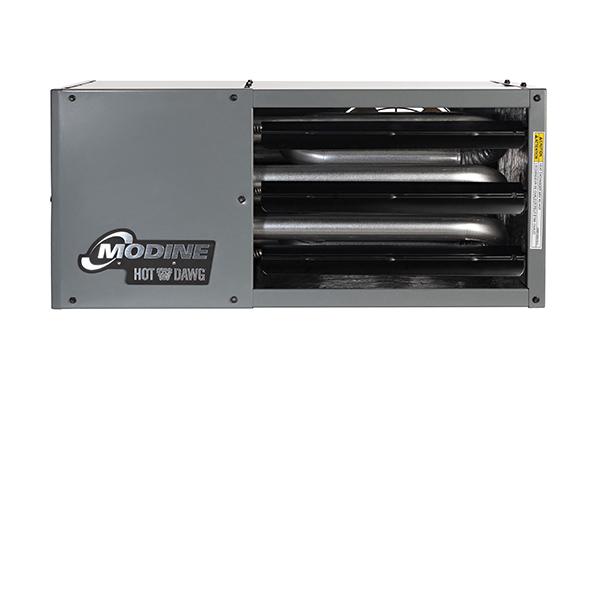

        MODINE Hot Dawg® HD 100AS0111FDAN Gas-Fired Unit Heater, 115 V, 100000 Btu/h

        MODINE HD 100AS0111FDAN

        The ideal heating solution for residential garages and workshops, along with light commercial or industrial applications. With versatile installation options, the Hot Dawg® garage heater frees up more workspace by getting rid of space heaters that clutter up the area. The quiet operation allows your space to be warm without the distraction of a loud machine running in the background.

        MODINE Gas-Fired Unit Heater, Model: HD, 100000 Btu/hr Input, 82000 Btu/hr Output, 115 V, 1490 cfm, 1/6 hp Rating, 1 ph, 60 Hz, 1/2 in Connection, Natural Gas, 18 in Dia Fan Size, PSC Motor, 1050 rpm Rotational Speed, 4 in Vent Size, Direct Spark Ignition, 1 Stage, Ceiling Mount, 12 ft Mounting Height, 42 ft Heat Throw, Metal, 50 deg F, 35-1/2 in L x 31 in W x 20-1/2 in H, Domestic, Additional Information: Aluminized Heat Exchanger, Finger-Proof Fan Guard Digit, Power-Exhausted

        Model      :      HD
        BTU Rating      :      100000 Btu/hr Input, 82000 Btu/hr Output
        Voltage Rating      :      115 V
        HP Rating      :      1/6 hp
        Rotational Speed      :      1050 rpm
        Frequency Rating      :      60 Hz
        Phase      :      1 ph
        Number of Stages      :      1
        Mounting Type      :      Ceiling
        Flow Rate      :      1490 cfm
        Motor Type      :      PSC
        Temperature Rating      :      50 deg F
        Material      :      Metal
        Dimensions      :      35-1/2 in L x 31 in W x 20-1/2 in H
        Domestic/Import      :      Domestic
        Additional Information      :      Aluminized Heat Exchanger, Finger-Proof Fan Guard Digit, Power-Exhausted
        • Low profile, lightweight design easily installs 1" from the ceiling with only two angle brackets
        • Operates on natural or propane gas; field conversation kits are available
        • Finger-proof fan guards on all units
        • Reduce the need for maintenance with the permanently lubricated motor
        • 100% shut-off with continuous retry to allow for safe ignition in the event the unit doesn't light on the first try
        • Right or left-hand controls are available on 30-75 units by rotating the unit 180 degrees
        • Power vented model simplifies side-wall or roof venting with a small-diameter vent pipe
        • Fuel Type: natural or propane gas
        • Designed, Engineered & Assembled in the USA
