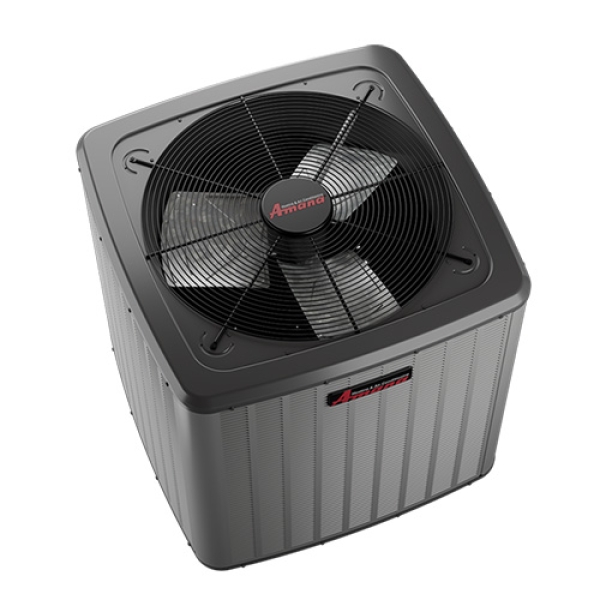

Amana® Split System Air Conditioner Condenser, Model: ASXH4, 3 ton Nominal Capacity, 36000 Btu/hr, 208/230 V, 18.6 A, 1/6 hp, 60 Hz, 1 ph Phase, Scroll Compressor, 13.8 to 14.5 SEER, 1 Stages, R-410A Refrigerant, 3/8 in Liquid Line, 7/8 in Suction Line, 75 dBA Sound Level, C Connection, 30 A Fuse Rating, PSC Motor, 65 to 115 deg F, Steel, Finish: Powder-Painted, Gray, 39-1/2 in H x 35-1/2 in W x 35-1/2 in D, Additional Information: TXV Expansion Device

• Constantly monitoring the performance of your Amana® brand air conditioner, this advanced diagnostics system provides insight for accurate troubleshooting and quick diagnosis and repairs
• Using the compressor as a sensor, CoreSense™ diagnostics delivers active protection and will proactively shut the system down should it detect conditions that could damage the compressor, as a result, catastrophic failures and extensive, costly repairs are often avoided
• You can be assured that your Amana® brand air conditioner will provide you with quiet operation
• To minimize operating sounds, we've acoustically engineered our systems with enhancements such as a specially designed sound control top
• Energy efficiency equates to cost savings
• Your Amana® brand ASXH4 air conditioner offers up to 15.2 SEER2 energy efficiency performance
• SEER stands for Seasonal Energy Efficiency Rating, a measure used by the US department of energy to rate the cooling efficiency of air conditioners and heat pumps
• The higher the SEER, the greater the efficiency and the lower the operating cost
• Compared to lower SEER units found in many homes, am Amana® brand ASXH3 air conditioner provides significant savings on your electric bill
• Energy efficient scroll compressor
• High density foam compressor sound blanket
• Advanced Copeland™ CoreSense™ technology
• Copper tube/enhanced aluminum fin coil - 5 mm dia on 1.5 - 3.0T
• Single-speed PSC condenser fan motor
• Factory installed filter drier
• Sweat connection service valves with easy access to gauge ports
• Contactor with lug connection
• Ground lug connection

• Specification Sheet https://www.gearypacific.com//ASSETS/DOCUMENTS/ITEMS/EN/ss-asxh4.pdf
