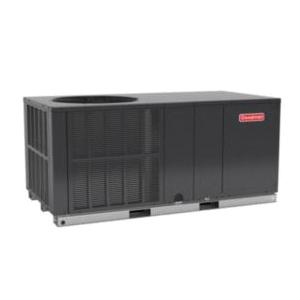

Goodman® GPHH33641
Goodman® Packaged Heat Pump, Model: GPHH3, 3 ton Nominal Capacity, 35200 Btu/hr Cooling, 32200 Btu/hr Heating, 208/230 V, 26 A, 50 to 15 kW Wattage, 1/2 hp, 60 Hz, 1 ph Phase, 1050 rpm Rotational Speed, Scroll Compressor, 1200 cfm, 13.4 SEER, 6.7 HSPF, 10.6 EER Rating, Horizontal, NPT Connection, 3/4 in Connection, R-410A Refrigerant, 1 Stage, 40 A Fuse Rating, 78 dBA Sound Level, 6.23 sq-ft Coil, 14 FPI Fins per Inch, Steel, Finish: Galvanized/Powder-Painted, Gray, 35 in H x 66 in W x 34 in D, Additional Information: 3-Row Evaporator Coil, 830 rpm, 1/4 hp Condenser Fan, 17.02 sq-ft Face Area, 24 FPI, 1-Row Condenser Coil
| Model | : | GPHH3 |
| SEER Rating | : | 13.4 |
| Cooling BTU Rating | : | 35200 Btu/hr |
| Heating BTU Rating | : | 32200 Btu/hr |
| Nominal Capacity | : | 3 ton |
| Voltage Rating | : | 208/230 V |
| Amperage Rating | : | 26 A |
| Refrigerant Type | : | R-410A |
| HSPF Rating | : | 6.7 |
| Wattage | : | 50 to 15 kW |
| HP Rating | : | 1/2 hp |
| Rotational Speed | : | 1050 rpm |
| Frequency Rating | : | 60 Hz |
| Phase | : | 1 ph |
| Compressor Type | : | Scroll |
| CFM Rating | : | 1200 cfm |
| Configuration | : | Horizontal |
| Sound Level | : | 78 dBA |
| EER Rating | : | 10.6 |
| Number of Stages | : | 1 |
| Coil Rating | : | 6.23 sq-ft |
| Connection Type | : | NPT |
| Fuse Rating | : | 40 A |
| Fins per Inch | : | 14 FPI |
| Material | : | Steel |
| Finish | : | Galvanized/Powder-Painted |
| Color | : | Gray |
| Dimensions | : | 35 in H x 66 in W x 34 in D |
| Additional Information | : | 3-Row Evaporator Coil, 830 rpm, 1/4 hp Condenser Fan, 17.02 sq-ft Face Area, 24 FPI, 1-Row Condenser Coil |
- Energy efficient scroll compressor
- Multi-speed ECM indoor blower motor
- Quiet horizontal discharge
- All aluminum evaporator coil
- Copper tube/aluminum fin condenser coil
