Goodman® GPHM56041

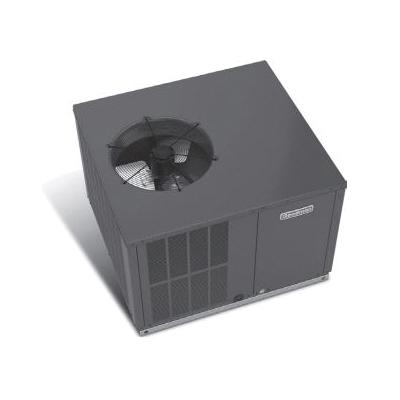

Goodman® Packaged Heat Pump, Model: GPHM5, 5 ton Nominal Capacity, 56500 Btu/hr Cooling, 58500 Btu/hr Heating, 208/230 V, 39 A, 5 to 20 kW Wattage, 1 hp, 60 Hz, 1 ph Phase, 1200 rpm Rotational Speed, Scroll Compressor, 2000 cfm, 15.2 SEER, 6.8 HSPF, 11.2 EER Rating, Multi-Position, FNPT Connection, 3/4 in Connection, R-410A Refrigerant, 2 Stages, 60 A Fuse Rating, 78 dBA Sound Level, 9.16 sq-ft Coil, 16 FPI Fins per Inch, Steel, Finish: Galvanized/Powder-Painted, Gray, 43-1/2 in H x 47-5/8 in W x 73-3/8 in D, Additional Information: 4-Row Evaporator Coil, 1090 rpm, 1/3 hp Condenser Fan, 19.01 sq-ft Face Area, 16 FPI, 2-Row Condenser Coil
| Model | : | GPHM5 |
| SEER Rating | : | 15.2 |
| Cooling BTU Rating | : | 56500 Btu/hr |
| Heating BTU Rating | : | 58500 Btu/hr |
| Nominal Capacity | : | 5 ton |
| Voltage Rating | : | 208/230 V |
| Amperage Rating | : | 39 A |
| Refrigerant Type | : | R-410A |
| HSPF Rating | : | 6.8 |
| Wattage | : | 5 to 20 kW |
| HP Rating | : | 1 hp |
| Rotational Speed | : | 1200 rpm |
| Frequency Rating | : | 60 Hz |
| Phase | : | 1 ph |
| Compressor Type | : | Scroll |
| CFM Rating | : | 2000 cfm |
| Configuration | : | Multi-Position |
| Sound Level | : | 78 dBA |
| EER Rating | : | 11.2 |
| Number of Stages | : | 2 |
| Coil Rating | : | 9.16 sq-ft |
| Connection Type | : | FNPT |
| Fuse Rating | : | 60 A |
| Fins per Inch | : | 16 FPI |
| Material | : | Steel |
| Finish | : | Galvanized/Powder-Painted |
| Color | : | Gray |
| Dimensions | : | 43-1/2 in H x 47-5/8 in W x 73-3/8 in D |
| Additional Information | : | 4-Row Evaporator Coil, 1090 rpm, 1/3 hp Condenser Fan, 19.01 sq-ft Face Area, 16 FPI, 2-Row Condenser Coil |
- High efficiency two-stage scroll compressor
- Two-stage heating and cooling
- Multi-speed ECM indoor blower motor
- Copper tube/aluminum fin condenser coil
- Aluminum copper evaporator coil
- Liquid line filter drier
- Convertible airflow - horizontal or downflow application
