        Navac NP5DP

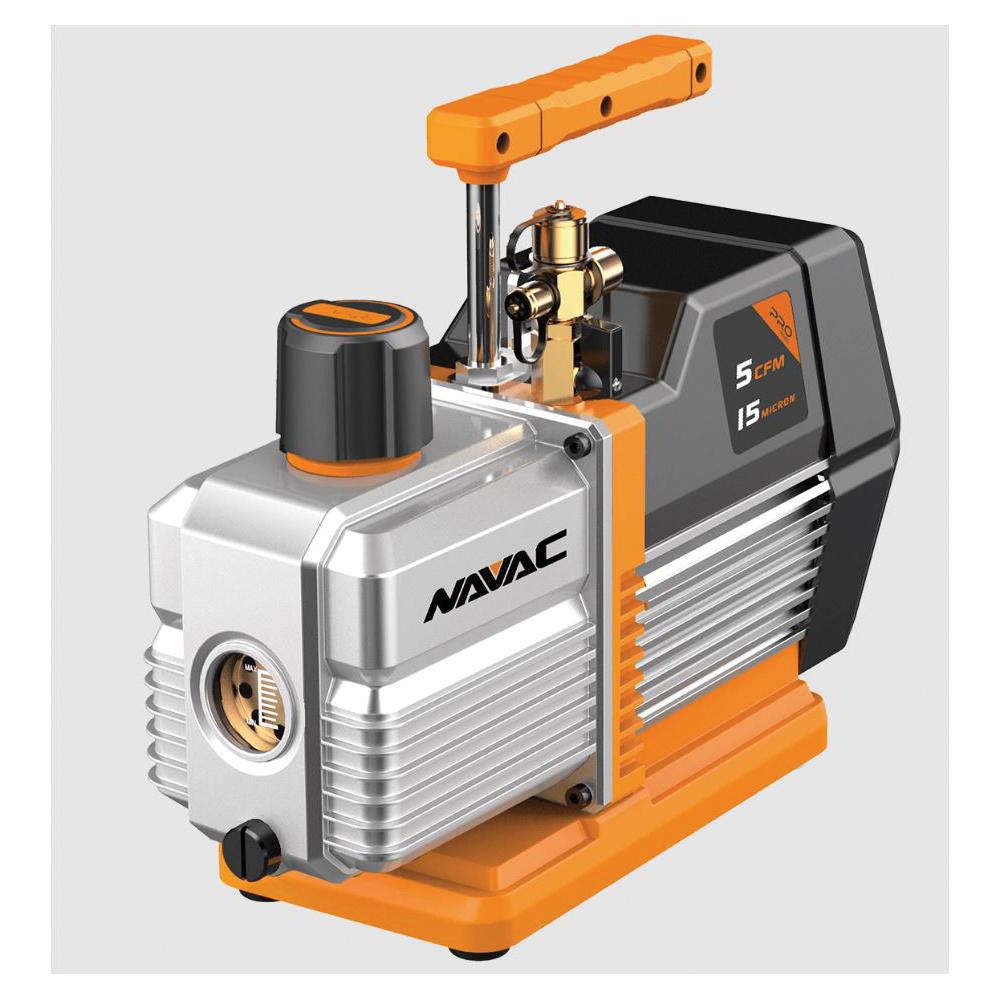

        Navac NP5DP Vacuum Pump, 115 V, 3/4 hp, 1/4 in, 3/8 in, 1/2 in, 5 cfm, 15 um Max

        Navac NP5DP

        The NP5DP features twin cylinder for high ultimate vacuum, integrated cylinder structure for high performance and reliability and forced oil circulation for improved efficiency and durability.

        Navac Vacuum Pump, 115 V, 4.3 A, 3/4 hp, 5 cfm Flow Rate, 15 um Maximum Vacuum, 1/4 in, 3/8 in, 1/2 in Connection, 17 oz Oil, 2-Stage, AC Motor, 14 in Overall Length, 5 in Overall Width, 11.3 in Overall Depth

        Voltage Rating      :      115 V
        Amperage Rating      :      4.3 A
        HP Rating      :      3/4 hp
        Flow Rate      :      5 cfm
        Maximum Vacuum      :      15 um
        Connection Size      :      1/4 in, 3/8 in, 1/2 in
        Oil Capacity      :      17 oz
        Motor Type      :      2-Stage, AC
        Overall Length      :      14 in
        Overall Width      :      5 in
        Overall Depth      :      11.3 in
        • High ultimate vacuum
        • High reliability
        • Prevent oil backflow
        • Safe and convenient for roof top use
        • Improved efficiency and durability
