AllStyle ASKM-6024A36GX-VP4-S

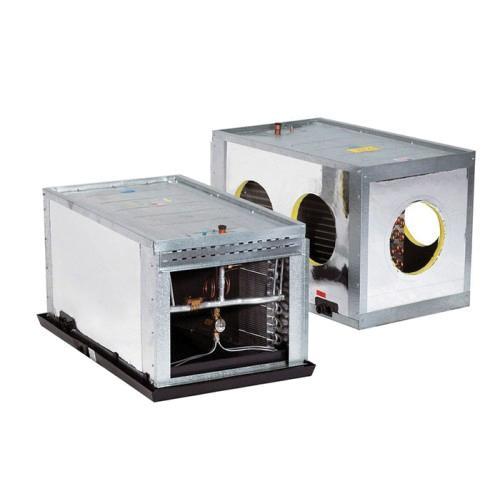

AllStyle Evaporator Horizontal Plenum Coil, Model: ASKM, 60 MBtu/hr, 5 ton, R-22, R-410A, Type A Coil, 3/4 in, FNPT x Slip, 3 Rows, 500 psi, Aluminum, 34-3/8 in L x 20-1/4 in W x 22-1/4 in H, For Use With: 17 to 23 in W Furnaces
| Model | : | ASKM |
| Coil Type | : | Type A |
| BTU Rating | : | 60 MBtu/hr |
| Tonnage | : | 5 ton |
| Refrigerant Type | : | R-22, R-410A |
| Connection Size | : | 3/4 in |
| Connection Type | : | FNPT x Slip |
| Number of Rows | : | 3 |
| Pressure Rating | : | 500 psi |
| Material | : | Aluminum |
| Dimensions | : | 34-3/8 in L x 20-1/4 in W x 22-1/4 in H |
| Suitable For Use With | : | 17 to 23 in W Furnaces |
- Cleanable, mold-resistant interior surface
- Fiberglass removed from the air stream
- Pitched, polycarbonate drain pan elevates coil from the condensate
- Top left and right refrigerant drain connections
- Superior airflow compared to other horizontal coils
- Easily removable top panel with locking air seal and knockout for UV light
- Factory installed thermal expansion valve
- Long life aluminum or rifled copper tubing
- Enhanced aluminum fins
- Heavy, aluminum end plates vs galvanized steel
- Plenum coil combines an adjustable inlet adapter, cooling coil and supply plenum into one easy install
- 5 ton plenum with R-410a TXV, auxillary pan and extended warranty
