        Amana® ASXS6S3610
        Send Print
        1. pin-int
        Amana® ASXS6S3610

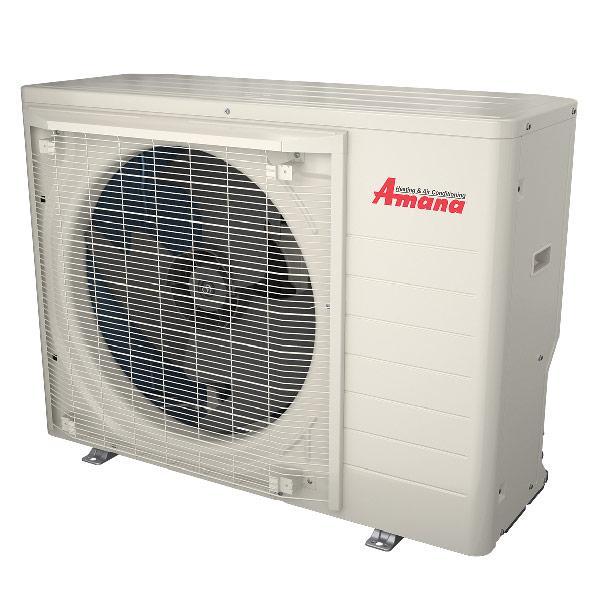

        Amana® S Series ASXS6 ASXS6S3610 Air Conditioner Condenser, 208/230 V, 23.9

        Amana® ASXS6S3610

        Amana® Air Conditioner Condenser, S Series, Model: ASXS6, 208/230 V, 23.9 A, 0.2 hp, 60 Hz, 1 ph Phase, 33600 Btu/hr Cooling, 15.6 to 16.5 SEER, C Connection, 3/8 in Liquid Line, 7/8 in Suction Line, 25 A Fuse Rating, Inverter Drive, Tonnage: 3 ton, 68 dBA Heating Sound Level, Wall Mounting, Steel, Finish: Galvanized/Powder-Painted, 0 to 115 deg F Cooling Operating Temperature, 36-5/8 in Overall Width, 27-3/8 in Overall Height, Additional Information: Side Discharge, EEV Expansion Device

        Series      :      S Series
        Model      :      ASXS6
        SEER Rating      :      15.6 to 16.5
        Cooling BTU Rating      :      33600 Btu/hr
        Tonnage      :      3 ton
        Voltage Rating      :      208/230 V
        Amperage Rating      :      23.9 A
        Mounting Type      :      Wall
        HP Rating      :      0.2 hp
        Frequency Rating      :      60 Hz
        Phase      :      1 ph
        Liquid Line Size      :      3/8 in
        Suction Line Size      :      7/8 in
        Drive Type      :      Inverter
        Connection Type      :      C
        Fuse Rating      :      25 A
        Material      :      Steel
        Finish      :      Galvanized/Powder-Painted
        Additional Information      :      Side Discharge, EEV Expansion Device
        Overall Width      :      36-5/8 in
        Overall Height      :      27-3/8 in
        • Blue fin corrosion coating-the Amana® brand S Series unit features a 1000 hr salt spray-rated coil as standard, this hydrophilic coating helps keep the coil clean
        • Quiet mode-this mode provides enhanced acoustical comfort, when activated (before sleep and more) homeowners will enjoy additional quiet within their space
        • Intelligent defrost mode-the outdoor unit will enable this mode to help prevent frost/ice from building up in cold climate conditions, it will also help with longer heating operation time for additional comfort for occupants (compared to HVAC systems without this function)
        • S Series smart thermostat system compatible
        • Flexibility in design and installation to meet demands of most projects
        • Install on pad or as a wall-mount
        • Will support zero lot line and small patio/backyard spaces
