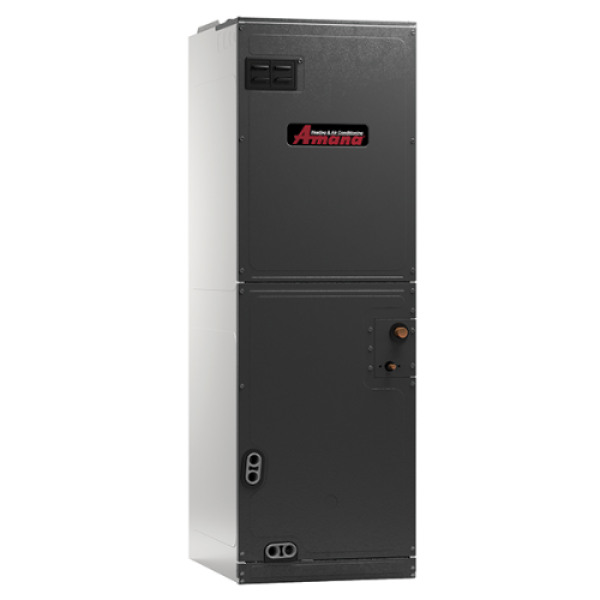

        Amana® AMST24BU1300

        Amana Multi-Position, 24K BTU/h, 1.5T, R32 Air Handler with internal TXV

        Amana® AMST24BU1300

        Having a high-efficiency air handler is a prime way to get the highest level of comfort from your central air conditioning or heat pump system. Make sure that your system is performing to its optimum level with our air handlers.

        Series      :      AMST Series
        Model      :      AMST24
        SEER Rating      :      15.2
        Cooling Capacity      :      24000 Btu/hr
        Nominal Capacity      :      2 ton
        HP Rating      :      3/4 hp
        Tonnage      :      1.25
        CFM Rating      :      350 to 450 cfm
        Voltage Rating      :      208/240 V
        Amperage Rating      :      5.8 A
        Frequency Rating      :      60 Hz
        Phase      :      1 ph
        Refrigerant Type      :      R-32
        Liquid Line Size      :      3/8 in
        Suction Line Size      :      3/4 in
        Connection Type      :      FPT
        Fuse Rating      :      15 A
        Motor Type      :      Multi-Speed ECM
        Finish      :      Galvanized/Unpainted
        Dimensions      :      45 in H x 17-1/2 in W x 21 in D
        Additional Information      :      Thermal Expansion Valve, 10 in Dia x 6 in W Blower, 4.6 A Blower Motor
        • Internal factory-installed thermal expansion valves for cooling and heat pump applications
        • 7mm evaporator coil tube size on 1½ - 3½ Ton models and â…œ"" evaporator coil tube size on 4 to 5 Ton models
        • Direct-Drive, 9-speed ECM blower motor
        • All-aluminum evaporator coil with high performance coated fin stock
        • Coil mounting track for quick repositioning
        • A2L compliant
        • Designed to work with R32 refrigerant to provide the best performance
        • Factory installed RDS designed for the lifespan of the coil
        • Cabinet air leakage less than 2.0%at 1.0 inch Hâ‚‚O when tested in accordance with ASHRAE standard 193
        • Cabinet air leakage less than 1.4%at 0.5 inch Hâ‚‚O when tested in accordance with ASHRAE standard 193
        • 3 kW – 25 kW electric heater kits
        • AHRI certified; ETL listed
