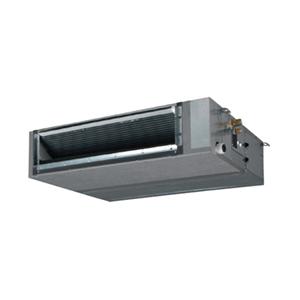

Engineered with impressive static pressure capabilities in a compact, flexible chassis design. Daikin's FXMQ_PBVJU MSP Concealed Ducted unit gives designers a tool to approach even the most cramped air conditioning applications. A high efficiency DC fan motor delivers nominal CFM up to 0.8" external static pressure.
DAIKIN Ducted Concealed Ceiling Unit, Series: FXMQ Series, Model: FXMQ_PBVJU, 208-230 V, 1.5 A, 0.19 kW, 60 Hz, 1 ph, 14200 Btu/hr, 560 cfm Rating, Flared Connection Type, Inverter Compressor, R-410A, 15 A Fuse, 2.68 sq-ft Coil Rating, Direct Drive, 1-1/4 ton Tonnage, 38 dBA, Ceiling Mount, Steel, Galvanized, 95 deg F, 39-3/8 in Overall Width, 11-13/16 in Overall Height, Additional Information: 27-9/16 in D Dimensions, 1/2 in Gas Pipe Connection, 1/4 in Liquid Pipe Connection, 1-1/4 in Condensate Connection, 0.8 in-WG Static Pressure
| Series | : | FXMQ Series |
| Model | : | FXMQ_PBVJU |
| Voltage Rating | : | 208-230 V |
| Amperage Rating | : | 1.5 A |
| BTU Rating | : | 14200 Btu/hr |
| Power Rating | : | 0.19 kW |
| Frequency Rating | : | 60 Hz |
| Phase | : | 1 ph |
| CFM Rating | : | 560 cfm |
| Connection Type | : | Flared |
| Compressor Type | : | Inverter |
| Refrigerant Type | : | R-410A |
| Fuse Rating | : | 15 A |
| Coil Rating | : | 2.68 sq-ft |
| Drive Type | : | Direct |
| Tonnage | : | 1-1/4 ton |
| Sound Level | : | 38 dBA |
| Mounting Type | : | Ceiling |
| Material | : | Steel |
| Finish | : | Galvanized |
| Temperature Rating | : | 95 deg F |
| Overall Width | : | 39-3/8 in |
| Overall Height | : | 11-13/16 in |
| Additional Information | : | 27-9/16 in D Dimensions, 1/2 in Gas Pipe Connection, 1/4 in Liquid Pipe Connection, 1-1/4 in Condensate Connection, 0.8 in-WG Static Pressure |
- Powerful static pressure capability, with up to 0.8 in w.g. (200 Pa) external static pressure
- Designed for installation flexibility, with a factory rear-return configuration and field convertible to bottom return
- Ease of installation with auto adjusting airflow at commissioning based on the external static pressure
- Backed by 10 year parts limited warranty
