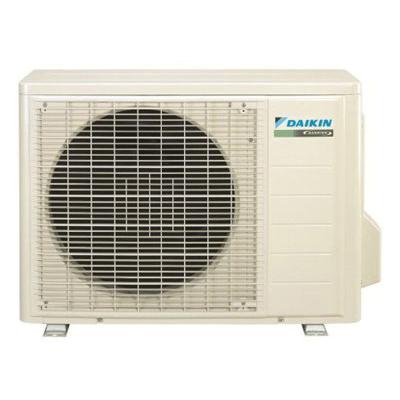

DAIKIN RX12QMVJU
DAIKIN Outdoor Unit Heat Pump, 208 to 230 V, 8.6 A, 864 W Power, 60 Hz Frequency, 1 ph, Heating BTU Rating: 13500 Btu/hr, Cooling BTU Rating: 10800 Btu/hr, 12.5 EER, 20.2 SEER, 11.2 HSPF, Inverter Hermetically Sealed Swing Compressor, R-410A Refrigerant, 1/4 in Liquid Line, 3/8 in Suction Line, 15 A Fuse, Tonnage: 1 ton, Ceiling Mounting, Ivory White, Heating Operating Temperature: 43 deg F, 47 deg F, Cooling Operating Temperature: 95 deg F DB, 75 deg F WB, 11-3/16 in Overall Length, 26-9/16 in Overall Width, 21-5/8 in Overall Height
| SEER Rating | : | 20.2 |
| Cooling BTU Rating | : | 10800 Btu/hr |
| Tonnage | : | 1 ton |
| HSPF Rating | : | 11.2 |
| Voltage Rating | : | 208 to 230 V |
| Amperage Rating | : | 8.6 A |
| Refrigerant Type | : | R-410A |
| EER Rating | : | 12.5 |
| Mounting Type | : | Ceiling |
| Frequency Rating | : | 60 Hz |
| Phase | : | 1 ph |
| Compressor Type | : | Inverter Hermetically Sealed Swing |
| Liquid Line Size | : | 1/4 in |
| Suction Line Size | : | 3/8 in |
| Fuse Rating | : | 15 A |
| Color | : | Ivory White |
| Overall Width | : | 26-9/16 in |
| Overall Height | : | 21-5/8 in |
- Inverter compressor
- 7.5 a rated load, 7.5 a maximum starting current
- Mid (blank) efficiency level
- United states standard compatibility
