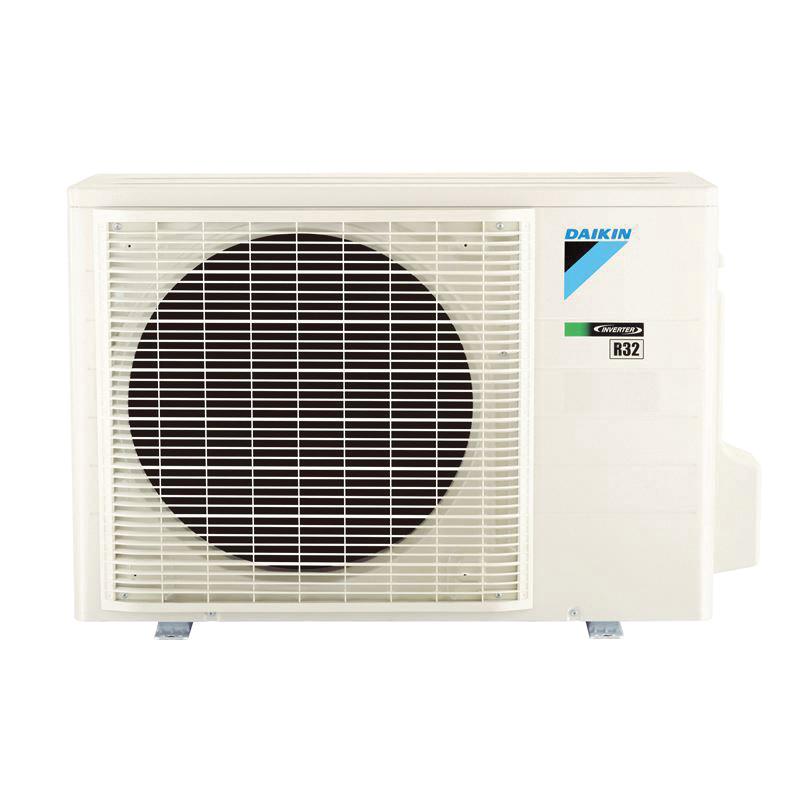

DAIKIN RXM24WVJU9
DAIKIN Heat Pump Outdoor Unit, FTXM-W Series, Model: RXM24, 208-230 V, 19.25 A, 123 W Power, HP Rating: 0.16 hp, 60 Hz Frequency, 1 ph, Heating BTU Rating: 24000 Btu/hr, Cooling BTU Rating: 21600 Btu/hr, Heating CFM Rating: 2119 cfm, Cooling CFM Rating: 2179 cfm, 12 EER, 10 SEER, 10 HSPF, Hermetic Sealed Swing Compressor, R-32 Refrigerant, 1/4 in Liquid Line, 5/8 in Suction Line, 15 A Fuse, Heating Sound Level: 56 dBA, Cooling Sound Level: 55 dBA, Ivory White, 34-1/4 in Overall Width, 28-15/16 in Overall Height, Additional Information: Single-Zone, 31.75 oz Refrigerant Oil Charge, 12-5/8 in D, 3.54 COP, Propeller Fan, Waffle Fin Heat Exchanger, 1.4 Fin per Inch Heat Exchanger, 2 Row x 32 Stages Heat Exchanger
| Series | : | FTXM-W Series |
| Model | : | RXM24 |
| SEER Rating | : | 10 |
| Cooling BTU Rating | : | 21600 Btu/hr |
| HSPF Rating | : | 10 |
| Voltage Rating | : | 208-230 V |
| Amperage Rating | : | 19.25 A |
| Refrigerant Type | : | R-32 |
| EER Rating | : | 12 |
| HP Rating | : | 0.16 hp |
| Frequency Rating | : | 60 Hz |
| Phase | : | 1 ph |
| Compressor Type | : | Hermetic Sealed Swing |
| Liquid Line Size | : | 1/4 in |
| Suction Line Size | : | 5/8 in |
| Fuse Rating | : | 15 A |
| Color | : | Ivory White |
| Additional Information | : | Single-Zone, 31.75 oz Refrigerant Oil Charge, 12-5/8 in D, 3.54 COP, Propeller Fan, Waffle Fin Heat Exchanger, 1.4 Fin per Inch Heat Exchanger, 2 Row x 32 Stages Heat Exchanger |
| Overall Width | : | 34-1/4 in |
| Overall Height | : | 28-15/16 in |
| Cooling CFM Rating | : | 2179 cfm |
| Cooling Sound Level | : | 55 dBA |
- Heat Pump outdoor unit using R-32 Refrigerant (may not be available in your area - check local codes regarding sale and installation
- Available in 0.75, 1, 1.5 & 2 ton capacities
- Dependable heat pump operation from -13F in heating to 114F in cooling
- 49.2 ft piping capabilities from factory refrigerant charge
