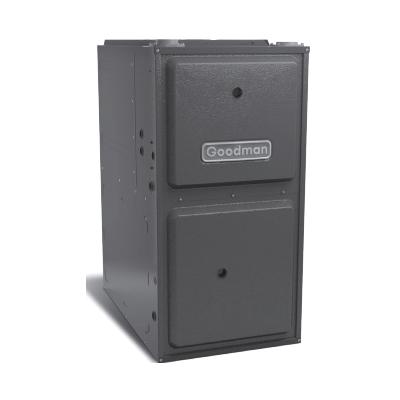

Goodman® GM9S920804CN
Goodman® Gas Furnace, Model: GM9S92, 80000 Btu/hr Input, 73680 Btu/hr Output, 115 VAC, 14.1 A, 1600 cfm Rating, 3/4 hp, 92 % AFUE Rating, 1 ph, 60 Hz, 1 Stage, Upflow, Horizontal, FNPT Connection, 1/2 in Connection, Natural Gas Fuel, 4 Burners, 9 Speed, 10 in Dia x 10 in W Blower, 34-1/2 in H x 21 in W x 28-3/4 in D Cabinet Dimensions, ECM Motor, Vent, Ducted or Ductless: Vent, 2 to 3 in Dia Vent, 15 A Fuse Rating, 40 VA Transformer Rating, Silicon Nitride Ignition, Aluminized Steel/Steel, 35 to 65 deg F Temperature Rise
| Model | : | GM9S92 |
| Voltage Rating | : | 115 VAC |
| Amperage Rating | : | 14.1 A |
| Configuration | : | Upflow, Horizontal |
| AFUE Rating | : | 92 % |
| CFM Rating | : | 1600 cfm |
| HP Rating | : | 3/4 hp |
| Input BTU Rating | : | 80000 Btu/hr |
| Frequency Rating | : | 60 Hz |
| Phase | : | 1 ph |
| Number of Stages | : | 1 |
| Connection Type | : | FNPT |
| Fuse Rating | : | 15 A |
| Motor Type | : | ECM |
| Material | : | Aluminized Steel/Steel |
- Heavy-duty aluminized steel tubular heat exchanger
- Stainless steel secondary heat exchanger
- Single-stage gas valve
- Durable silicon nitride igniter
- Multi-speed ECM blower motor
- Quiet single-speed induced draft blower
- Self-diagnostic control board
