        Amana® AR9S800804BX
        Send Print
        1. pin-int

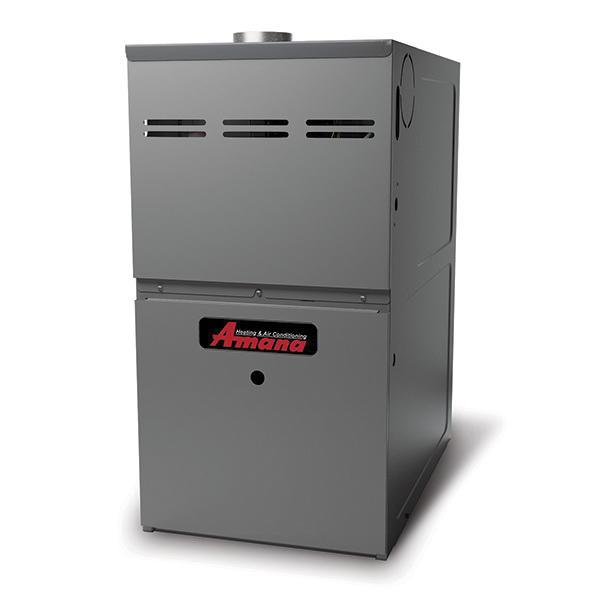

        Amana® AR9S800804BX

        Amana® AR9S80 AR9S800804BX Gas Furnace, 115 V, 1600 cfm, 3/4 hp, 80 % AFUE,

        Amana® AR9S800804BX

        Amana® Gas Furnace, Model: AR9S80, 80000 Btu/hr Input BTU Rating, 64000 Btu/hr Output BTU Rating, 115 V, 11.3 A, 1600 cfm Rating, 3/4 hp Rating, 80 % AFUE, 1 ph, 60 Hz, 1 Stage, Horizontal/Upflow Configuration, FPT Connection Type, 1/2 in Connection, Natural Gas, 4 Burners, 9 Speed, 10 x 8 in Blower Size, 33-3/8 in H x 17-1/2 in W x 28 in D Cabinet Dimensions, ECM Motor, 1075 rpm Rotational Speed, Vent, Ducted or Ductless, 4 in Vent Size, 15 A Fuse, 40 VA Transformer, Hot Surface Ignition, Steel, Baked Enamel, 35 to 65 deg F Rise, Domestic, Additional Information: Boxed Packaging

        Model      :      AR9S80
        Voltage Rating      :      115 V
        Amperage Rating      :      11.3 A
        Configuration      :      Horizontal/Upflow
        AFUE Rating      :      80 %
        CFM Rating      :      1600 cfm
        HP Rating      :      3/4 hp
        Input BTU Rating      :      80000 Btu/hr
        Rotational Speed      :      1075 rpm
        Frequency Rating      :      60 Hz
        Phase      :      1 ph
        Number of Stages      :      1
        Connection Type      :      FPT
        Fuse Rating      :      15 A
        Motor Type      :      ECM
        Material      :      Steel
        Finish      :      Baked Enamel
        Domestic/Import      :      Domestic
        Additional Information      :      Boxed Packaging
        • A gas furnace is a piece of equipment from which you expect years of uninterrupted service. Amana® brand gas furnaces live up to expectations through intelligently designed components that benefit from decades of performance testing and refinement, like our new stainless-steel heat exchanger. And with outstanding warranties* that demonstrate our confidence, you can purchase an Amana brand furnace safe in the knowledge it will Last and Last and Last®.
        • Many homeowners may think the best gas furnaces are not seen or heard. That's why an Amana brand AM9S80/AC9S80 Multi-Speed ECM Furnace is insulated for noise reduction. With a sound-isolated blower assembly and a heavy-gauge steel cabinet, it offers quiet and efficient performance compared to furnaces with single-speed motors.
        • Energy efficiency equates to cost savings. A gas furnace's efficiency rating can primarily be determined by two factors: its AFUE rating (Annual Fuel Utilization Efficiency), which indicates what percentage of each dollar of natural gas purchased is actually used to heat your home; and the type of blower used in the furnace.
        • Heavy-duty stainless-steel, dualdiameter tubular heat exchanger
        • Single-stage gas valve
        • Durable Hot-surface igniter
        • Quiet, single-speed draft induced
        • Self-diagnostic control board
        • Color-coded low-voltage terminals
        • Multi-speed ECM blower motor
        • California Low NOx emissions models available
        • Can not be installed in California's South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
        • AHRI Certified; ETL Listed
