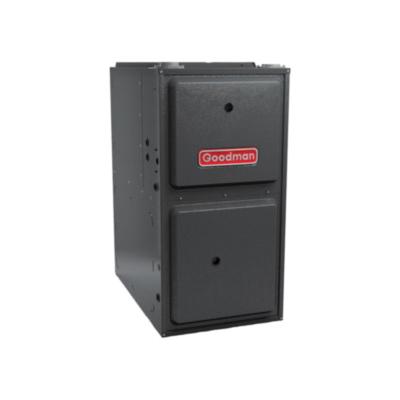

Goodman® GR9S921004CN
Goodman® Gas Furnace, Model: GR9S92, 100000 Btu/hr Input BTU Rating, 92100 Btu/hr Output BTU Rating, 115 V, 13.7 A, 1600 cfm Rating, 3/4 hp Rating, 92 % AFUE, 1 ph, 60 Hz, 1 Stage, Horizontal/Upflow Configuration, FPT Connection Type, 1/2 in Connection, Natural Gas, 5 Burners, 9 Speed, 10 x 10 in Blower Size, 34-1/2 in H x 21 in W x 28-3/4 in D Cabinet Dimensions, ECM Motor, 1075 rpm Rotational Speed, Vent, Ducted or Ductless, 2 to 3 in Vent Size, 20 A Fuse, 40 VA Transformer, Silicon Nitride Ignition, Steel, 35 to 65 deg F Rise, Domestic
| Model | : | GR9S92 |
| Voltage Rating | : | 115 V |
| Amperage Rating | : | 13.7 A |
| Configuration | : | Horizontal/Upflow |
| AFUE Rating | : | 92 % |
| CFM Rating | : | 1600 cfm |
| HP Rating | : | 3/4 hp |
| Input BTU Rating | : | 100000 Btu/hr |
| Rotational Speed | : | 1075 rpm |
| Frequency Rating | : | 60 Hz |
| Phase | : | 1 ph |
| Number of Stages | : | 1 |
| Connection Type | : | FPT |
| Fuse Rating | : | 20 A |
| Motor Type | : | ECM |
| Material | : | Steel |
| Domestic/Import | : | Domestic |
- Heavy-duty aluminized-steel tubular heat exchanger
- Stainless-steel secondary heat exchanger
- Single-stage gas valve
- Durable Silicon Nitride igniter
- Multi-speed ECM blower motor
- High reliability and quality
- Faster condensate water drainage and no unit water leakage
- Durable and long igniter life
- Lower NOx emission
- Simple installation and setup
- Quiet and simple operation
Warranty Information
