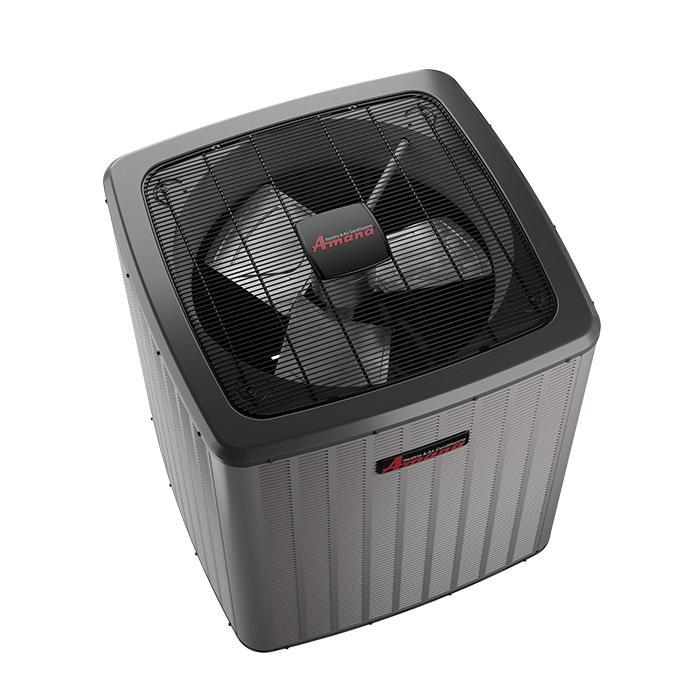

Amana® ALXS5BA1810
Amana® Split-System Air Conditioner, Model: ALXS5B, 1.5 ton Nominal Capacity, 18000 Btu/hr Cooling Capacity, 208/230 V, 11.1 A, 1520 W Wattage, 1/8 hp, 60 Hz, 1 ph Phase, Scroll Compressor, 525 cfm, Up to 16.5 SEER, 1 Stages, R-32 Refrigerant, 3/8 in Liquid Line, 3/4 in Suction Line, 71 dBA Sound Level, Sweat Connection, 15 A Fuse Rating, PSC Motor, 75 to 115 deg F, Steel, Finish: Galvanized/Powder-Painted, Gray, 27 in H x 26 in W x 26 in D, Additional Information: High Efficiency
| Model | : | ALXS5B |
| SEER Rating | : | Up to 16.5 |
| Cooling Capacity | : | 18000 Btu/hr |
| HP Rating | : | 1/8 hp |
| Nominal Capacity | : | 1.5 ton |
| Compressor Type | : | Scroll |
| Voltage Rating | : | 208/230 V |
| Amperage Rating | : | 11.1 A |
| Wattage | : | 1520 W |
| Frequency Rating | : | 60 Hz |
| Phase | : | 1 ph |
| CFM Rating | : | 525 cfm |
| Number of Stages | : | 1 |
| Refrigerant Type | : | R-32 |
| Liquid Line Size | : | 3/8 in |
| Suction Line Size | : | 3/4 in |
| Sound Level | : | 71 dBA |
| Connection Type | : | Sweat |
| Fuse Rating | : | 15 A |
| Motor Type | : | PSC |
| Temperature Rating | : | 75 to 115 deg F |
| Material | : | Steel |
| Finish | : | Galvanized/Powder-Painted |
| Color | : | Gray |
| Dimensions | : | 27 in H x 26 in W x 26 in D |
| Additional Information | : | High Efficiency |
- High efficiency scroll compressor
- High-density foam compressor sound blanket
- Advanced Copeland® CoreSense™ Technology
- Fully charged for 15' of tubing length
- Copper tube/ enhanced aluminum fin coil- 5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor
- High-pressure switch
- Ground lug connection
- Capacitors with extended life
- AHRI Certified
- ETL Listed
Specification Sheet
