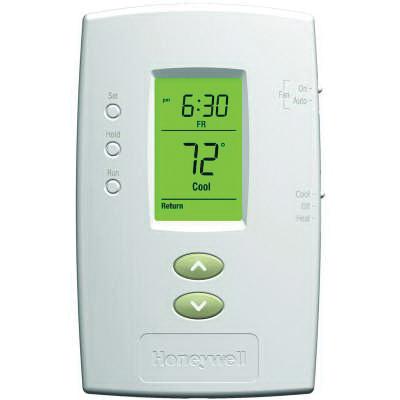

        Honeywell TH2110D1009/U

        Honeywell PRO 2000 Series TH2110D1009/U Thermostat, 20 to 30 VAC, 750 mV, 0.02 t

        Honeywell TH2110D1009/U

        Honeywell Thermostat, PRO 2000 Series, 20 to 30 VAC, 750 mV, 0.02 to 1 A, 0.4 to 30 W Power, 50/60 Hz Frequency, Programmability: 5-2 day Program, Changeover: Manual, Dual Powered to Battery, Hardwired Power Source, 1 Heat/1 Cool Stages, Switch Position: HEAT-OFF-COOL (System), AUTO-ON (Fan), 1.73 sq-in Display, 40 to 90 deg F Heating, 50 to 99 deg F Cooling Settings, 5 to 90% RH Non-Condensing Humidity, Vertical Mounting, Cool Current: 0.02 to 1 A Running, Terminal Designation: R, C, W, Y, O/B, G, Heat Current: 0.02 to 1 A Running, Premier White, Dimensions: 4-11/16 in H x 2-7/8 in W x 1-1/8 in D

        Series      :      PRO 2000 Series
        Voltage Rating      :      20 to 30 VAC, 750 mV
        Amperage Rating      :      0.02 to 1 A
        Power Rating      :      0.4 to 30 W
        Frequency Rating      :      50/60 Hz
        Programmability      :      5-2 day Program
        Changeover      :      Manual
        Power Source      :      Dual Powered to Battery, Hardwired
        Stages      :      1 Heat/1 Cool
        Switch Position      :      HEAT-OFF-COOL (System), AUTO-ON (Fan)
        Display Type      :      1.73 sq-in
        Temperature Settings      :      40 to 90 deg F Heating, 50 to 99 deg F Cooling
        Humidity Rating      :      5 to 90% RH Non-Condensing
        Mounting Type      :      Vertical
        Cool Current      :      0.02 to 1 A Running
        Terminal Designation      :      R, C, W, Y, O/B, G
        Heat Current      :      0.02 to 1 A Running
        Color      :      Premier White
        Dimensions      :      4-11/16 in H x 2-7/8 in W x 1-1/8 in D
        • The PRO programmable family of thermostats offers a basic thermostat with the benefits of energy savings, the PRO features an easy-to-read display and 5-2 days programming
        • Weekday/weekend programming - 5 - 2 (weekdays, weekend) programming
        • Backlit digital display - both current and set temperatures are easy to read in various lighting conditions
        • Precise comfort control (+/- 1 deg F) maintains consistent comfort to the highest level of accuracy
        • Basic operation - easy-to-use slide switches allow you to select the heat or cool mode and operate the fan
        • The PRO 4000 has built-in instructions simple, pull out instruction manual
        • Adaptive intelligent recovery - ensures programmed temperature is reached by programmed time
