        Delta Breez SIG80-110H

        Delta Breez Signature SIG80-110H Exhaust Fan With Humidity Sensor, 120 V, 0.38 A

        Delta Breez SIG80-110H

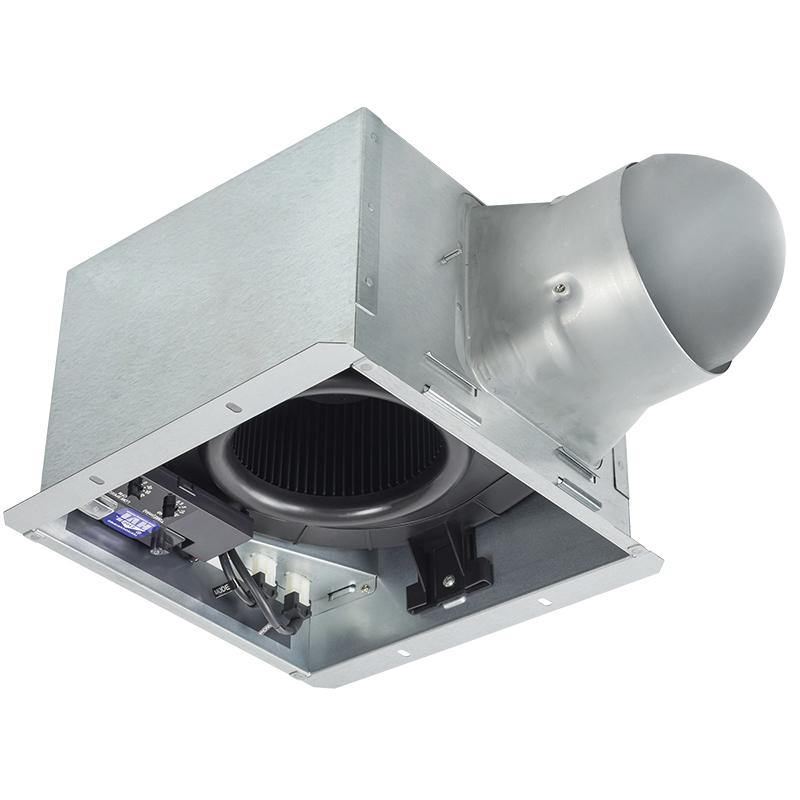

        Low noise ceiling mount ventilating fan with humidity sensor rated for continuous running. Fan has been awarded ENERGY STAR® Most Efficient. It is HVI, UL, and cUL certified to comply with ASHRAE 62.2 local and whole building continuous and intermittent operation. Meets CA Title 24 requirements.

        Delta Breez Exhaust Fan, 120 V, 0.38 A, 60 Hz, 17.5 W, 0.25 in-WG, Steel, Galvanized, Ceiling Mount, 9-5/8 in Length, 9-5/8 in Width, 7-7/8 in Height, 12-3/8 in L x 12-3/8 in W Grille, 80 cfm, 110 cfm Rating, 4 in, 6 in Duct, Brushless DC Motor Specifications, 0.6 sones Noise Rating

        Voltage Rating      :      120 V
        Amperage Rating      :      0.38 A
        Frequency Rating      :      60 Hz
        Power Rating      :      17.5 W
        Pressure Rating      :      0.25 in-WG
        Material      :      Steel
        Finish      :      Galvanized
        Mounting Type      :      Ceiling
        Length      :      9-5/8 in
        Width      :      9-5/8 in
        Height      :      7-7/8 in
        Grille Size      :      12-3/8 in L x 12-3/8 in W
        CFM Rating      :      80 cfm, 110 cfm
        Duct Size      :      4 in, 6 in
        Motor Specifications      :      Brushless DC
        Noise Rating      :      0.6 sones
        • ENERGY STAR® qualified with innovative brushless DC motor technology
        • Perfectly quiet operation at less than 0.3 sones

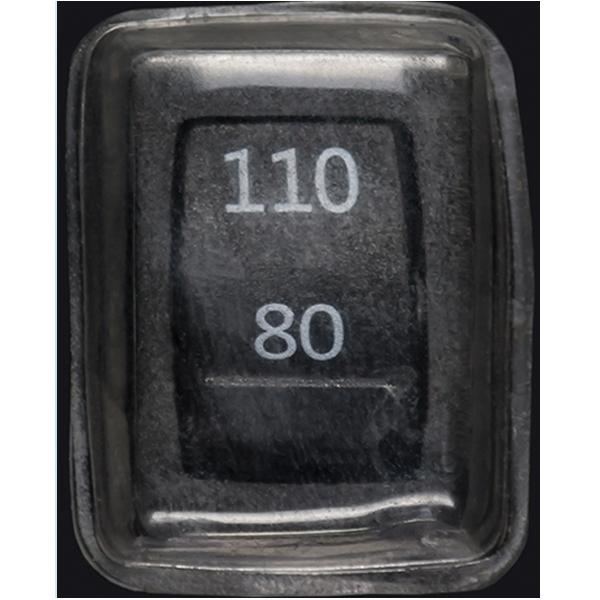

        • Full speed adjustable, 80 or 110 CFM
        • Allows fan to operate in full speed mode or humidity control mode by manual switch
        • For humidity control mode, when humidity is above the user-adjustable set-point, fan runs at full speed. When humidity is below the set-point, the fan runs continuously at a pre-set lower level (0, 30, 50, 60, or 80 CFM)
        • Adjustable humidity set points between ~50% to ~90% RH

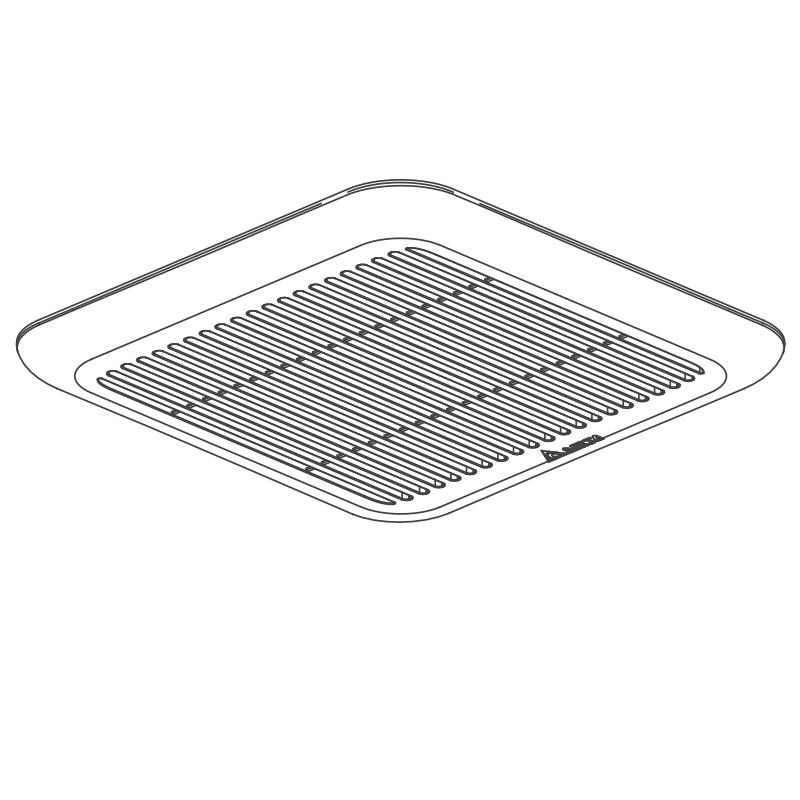

        • White Grille

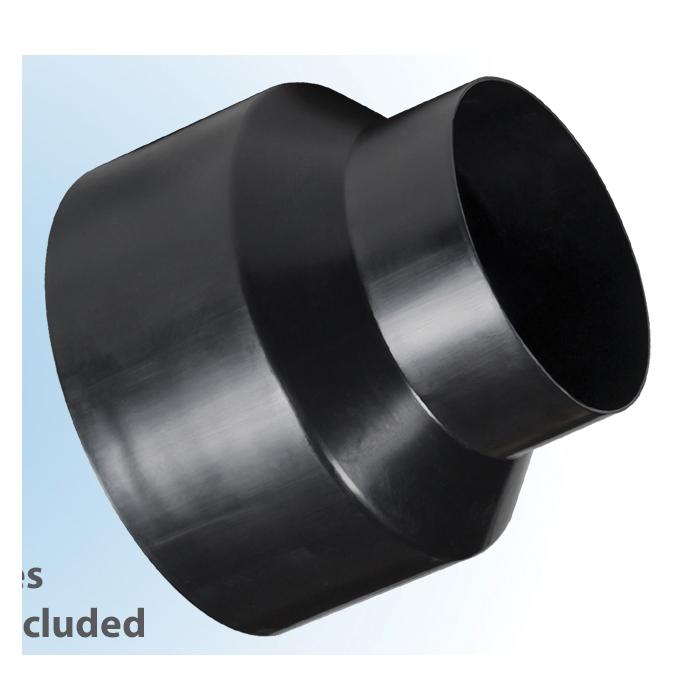

        • Includes 6" to 4" duct reducer
        • Energy efficiency at 15.4 CFM/Watt
        • Blue and amber LED indicator lights to show humidity sensor and full speed modes
        • Annual energy cost for 24/7 operation is approximately $6.50 (80 CFM) or $8.62 (110 CFM)
