        Bard® W180BPT0ZEP1XX1
        Send Print
        1. pin-int
        Bard® W180BPT0ZEP1XX1

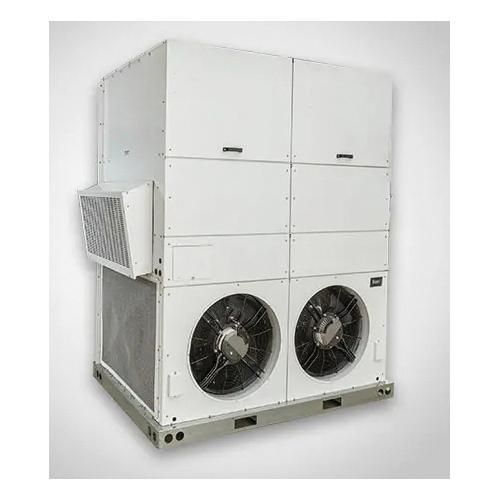

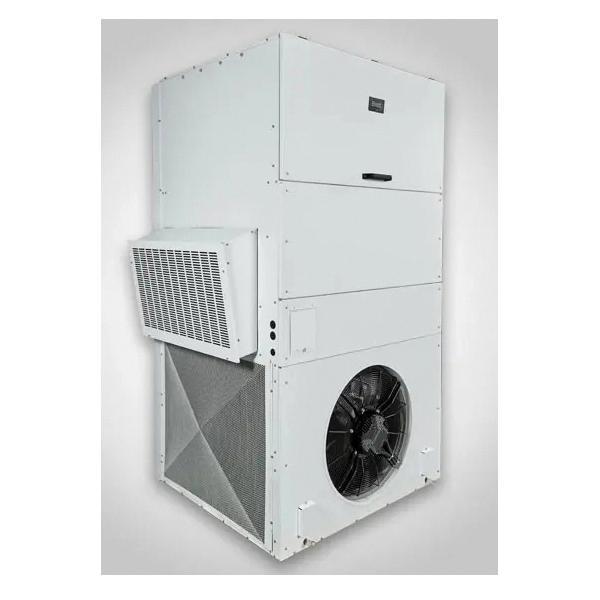

        Bard® MEGA-TEC™ W180 W180BPT0ZEP1XX1 Air Conditioner With Circuit Brea

        Bard® W180BPT0ZEP1XX1

        The MEGA-TEC is designed for applications requiring a large amount of sensible cooling capacity and limited wall space. Dual refrigeration circuits and a total of three stages with the lowest stage less than 35% of the total capacity provide cooling for an area with a varying heat load. MEGA-TEC provides an AHRI certified 10+ EER solution that meets D.O.E. requirements and the efficiency ratings of state and national codes. Industrial grade indoor and outdoor fans provide years of trouble-free service. An optional economizer provides full-flow outdoor air intake and room exhaust based on outside temperature or enthalpy.

        Bard® Air Conditioner, Series: WB Series, Model: W180, 15 ton Nominal Capacity, 178000 Btu/hr Cooling, 178000 Btu/hr Cooling BTU Rating, 415/380 V, 460 V, 40 A, 1.2 hp Rating, 1500 rpm Rotational Speed, 50/60 Hz, 3 ph, Scroll Compressor, 5400 cfm Rating, 10 EER, 3 Stage, R-410A, Wall Mount, ECM Motor, 16 x 25 x 2 in Filter, Steel, Baked Enamel/Zinc-Coated, White, 94.2 in H x 74.5 in W x 50.9 in D, Additional Information: PLC Logic Board, Full Flow Economizer Temperature/Enthalpy Vent Package, 2 in MERV8 Disposable Filter, Standard Supply Outlet, Standard Copper/Aluminum Coils

        Series      :      WB Series
        Model      :      W180
        Cooling BTU Rating      :      178000 Btu/hr
        Nominal Capacity      :      15 ton
        Voltage Rating      :      415/380 V, 460 V
        Amperage Rating      :      40 A
        Refrigerant Type      :      R-410A
        Mounting Type      :      Wall
        HP Rating      :      1.2 hp
        Cooling Capacity      :      178000 Btu/hr
        Rotational Speed      :      1500 rpm
        Frequency Rating      :      50/60 Hz
        Phase      :      3 ph
        Compressor Type      :      Scroll
        CFM Rating      :      5400 cfm
        EER Rating      :      10
        Number of Stages      :      3
        Motor Type      :      ECM
        Material      :      Steel
        Finish      :      Baked Enamel/Zinc-Coated
        Color      :      White
        Dimensions      :      94.2 in H x 74.5 in W x 50.9 in D
        Additional Information      :      PLC Logic Board, Full Flow Economizer Temperature/Enthalpy Vent Package, 2 in MERV8 Disposable Filter, Standard Supply Outlet, Standard Copper/Aluminum Coils
        • Large Cooling Capacity / High Sensible Capacity
        • Copeland UltraTech Scroll Compressors
        • Dual Refrigerant Circuits
        • Optional Factory Economizer
        • Optional Electric Reheat Dehumidification
        • R-410A Refrigerant
        • 230/208-3-60 & 460-3-60, 575-3-60
        • 220/200-3-50, 415/380-3-50
        • PLC Control Board Logic
        • Industrial Indoor/Outdoor Motors
        • 2" MERV8 Air Filter
        • Airflow & Dirty Filter Switches
        • High & Low Pressure Transducers
        • Supply/Return Temperature Sensors
        • Compressor Crank Case Heater
        • Optional Technical Coil Protection
        • AHRI Certified
        • ETL Listed (US and Canada)
