        Mortex™ G18D060CA4BC
        Send Print
        1. pin-int
        Mortex™ G18D060CA4BC

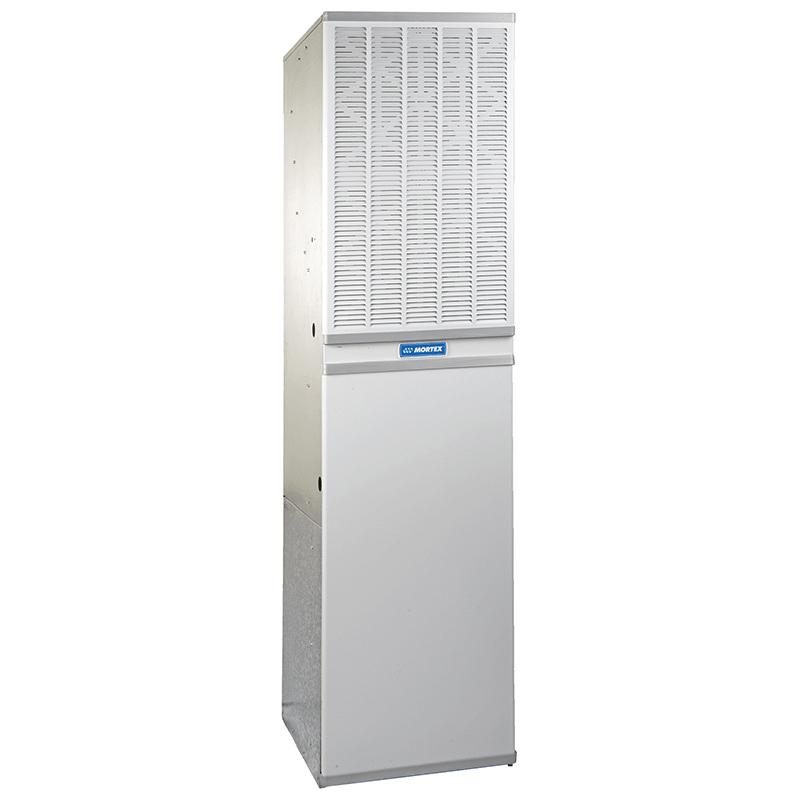

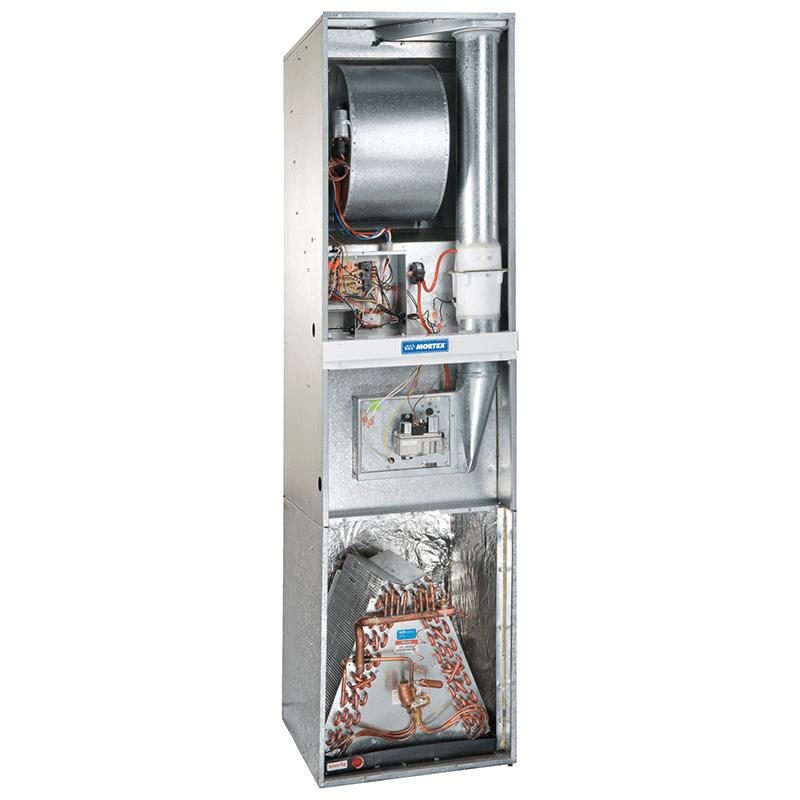

        Mortex™ G-18 Series G18D060CA4BC High Efficiency Gas Furnace, 115 V, 1700

        Mortex™ G18D060CA4BC

        Mortex™ High Efficiency Gas Furnace, G-18 Series, 115 V, 5.3 A, 1700 cfm, 3/4 hp, 80 % AFUE Rating, 1 ph Phase, 60 Hz, 1 Stage, Downflow, NPT Connection, 1/8 in Connection, LP Gas, Natural Gas Fuel, 5 Speed, 77.5 in H x 19.755 in W x 23.822 in D Cabinet, ECM Motor, Vent, Ducted or Ductless: Vent, Ducted, 4 in Vent, 3 A Fuse Rating, 24 VAC Transformer, Hot Surface Ignition System, 4.5 to 10.5 in-WC, 11 to 13 in-WC, Wall Mounting, 40 to 70 deg F Temperature Rise

        Series      :      G-18 Series
        Voltage Rating      :      115 V
        Amperage Rating      :      5.3 A
        Configuration      :      Downflow
        AFUE Rating      :      80 %
        CFM Rating      :      1700 cfm
        HP Rating      :      3/4 hp
        Frequency Rating      :      60 Hz
        Phase      :      1 ph
        Number of Stages      :      1
        Mounting Type      :      Wall
        Connection Type      :      NPT
        Fuse Rating      :      3 A
        Motor Type      :      ECM
        Pressure Rating      :      4.5 to 10.5 in-WC, 11 to 13 in-WC
        • Sealed combustion meets HUD requirements
        • Hot surface ignition and solid state controls
