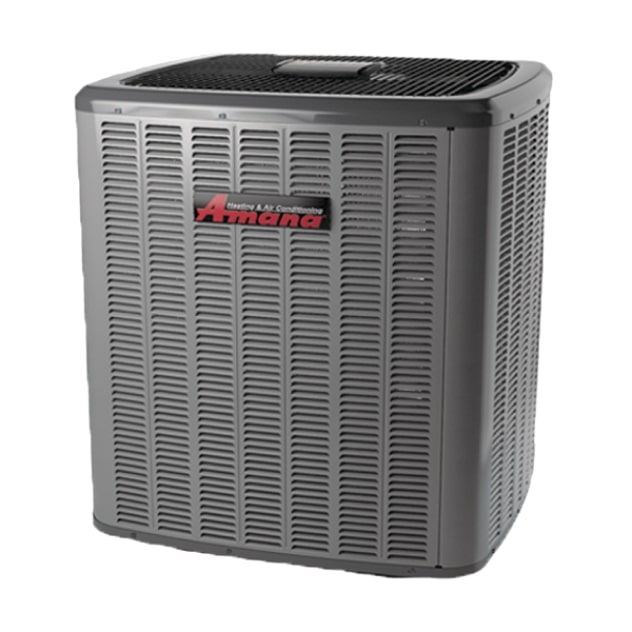

Amana® ALXS3BN3010
-
Amana brand central air conditioning systems are designed to be perfect for any home. Even on the hottest days of the year, they can keep a home cool and comfortable. Don’t choose between performance, durability, and optimum cooling comfort. Install an Amana brand air conditioner and get all three. As you review the various Amana brand air conditioners, remember that higher SEER2 numbers reflect the more energy-efficient systems. For the greatest energy-efficiency savings, select an air conditioning system with the highest SEER2 rating.
| Model | : | ALXS3B |
| SEER Rating | : | 15 |
| Cooling Capacity | : | 30000 Btu/hr |
| HP Rating | : | 1/8 hp |
| Nominal Capacity | : | 2.5 ton |
| Compressor Type | : | Scroll |
| Tonnage | : | 2.5 |
| Voltage Rating | : | 208/230 V |
| Amperage Rating | : | 15.1 A |
| Wattage | : | 2570 W |
| Frequency Rating | : | 60 Hz |
| Phase | : | 1 ph |
| CFM Rating | : | 950 cfm |
| Number of Stages | : | 1 |
| Refrigerant Type | : | R-32 |
| Liquid Line Size | : | 3/8 in |
| Suction Line Size | : | 3/4 in |
| Sound Level | : | 68 dBA |
| Connection Type | : | Sweat |
| Fuse Rating | : | 25 A |
| Motor Type | : | PSC |
| Finish | : | Powder-Painted |
| Color | : | Gray |
| Dimensions | : | 32-1/2 in H x 26 in W x 26 in D |
| Additional Information | : | Energy-Efficient |
- Constantly monitoring the performance of your Amana® brand air conditioner, this advanced diagnostics system provides insight for accurate troubleshooting and quick diagnosis and repairs. Using the compressor as a sensor, CoreSense Diagnostics delivers active protection and will proactively shut the system down should it detect conditions that could damage the compressor. As a result, catastrophic failures and extensive, costly repairs are often avoided.
- You can be assured that your Amana brand air conditioner will provide you with quiet operation. To minimize operating sounds, we've acoustically engineered our systems with enhancements such as a specially designed sound-control top.
- Energy efficiency equates to cost savings. Your Amana brand ALXS3B Air Conditioner offers up to 14.5 SEER2 energy-efficiency performance. "SEER" stands for Seasonal Energy Efficiency Ratio, a measure used by the U.S. Department of Energy to rate the cooling efficiency of air conditioners and heat pumps.
- The higher the SEER, the greater the efficiency-and the lower the operating cost. Compared to lower SEER units found in many homes, am Amana brand ALXS3B Air Conditioner provides significant savings on your electric bill.
- High efficiency Energy-efficient compressor
- High-density foam compressor
- Advanced Copeland® Technology
- Fully charged for 15' of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor
- High-pressure switch
- Ground lug connection
- Capacitors with extended life
