Aspen CQ60A34-210T-027

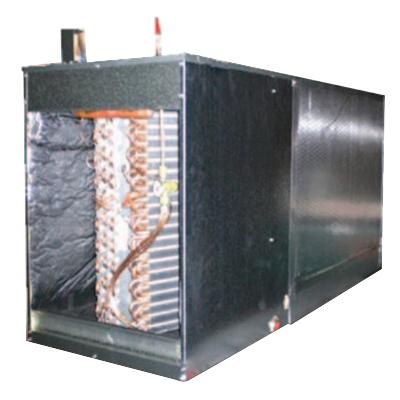

Aspen Evaporator Coil, Series: DX-Treme CQ Series, Model: CQ60A, 60000 Btu/hr, Horizontal, 5 ton, R-410A, Cased Coil, 3/8 in, 3/4 in, 7/8 in, FNPT, 0.089 in Piston Size, Copper, Galvanized, Embossed, 26-1/8 in H x 21 in W x 46 in D
| Series | : | DX-Treme CQ Series |
| Model | : | CQ60A |
| Coil Type | : | Cased |
| BTU Rating | : | 60000 Btu/hr |
| Tonnage | : | 5 ton |
| Configuration | : | Horizontal |
| Refrigerant Type | : | R-410A |
| Connection Size | : | 3/8 in, 3/4 in, 7/8 in |
| Connection Type | : | FNPT |
| Piston Size | : | 0.089 in |
| Material | : | Copper |
| Finish | : | Galvanized |
| Color | : | Embossed |
| Dimensions | : | 26-1/8 in H x 21 in W x 46 in D |
- Rifled copper tubing, enhanced aluminum fins
- Immersion tested at 500 psi, then nitrogen pressurized and sealed
- Inlet and outlet dimensions are identical (without end caps)
- Externally mounted flow rater body with Schrader® valve for hiss-testing
- Refrigerant lines exit from the top of the coil
- Split access doors on top of the coil for easy service
- Fully insulated cabinets with faced insulation
- Primary pan constructed of heavy-duty plastic with four 3/4 in fpt condensate drains (2/side), pan is positively sloped toward drains, drain diverter channels condensate out of secondary drain into auxiliary pan
- Auxiliary pan constructed of painted galvanized steel with two 3/4 in fpt condensate drains (1/side)
- Plenum sides and top constructed of foil backed faced fiberglass ductboard or sheet metal
- Plenum end and bottom constructed of galvanized steel
- Built-in auxiliary drain pan
- Coil descriptor code are face area, rows, fins
- Non-bleed air conditioner or heat pump R-410 TXV metering device
- 21 in W furnace
- Refrigerant out the top, plumbing out opposite sides
