        Bard® 8000-361

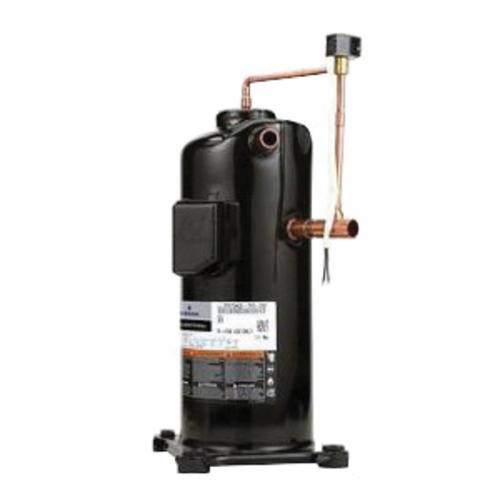

        Bard® 8000-361 Scroll Compressor, 460 VAC, 5 hp, R-410A Refrigerant

        Bard® 8000-361

        Bard® Scroll Compressor, 54000 Btu/hr BTU, 0.785 in Suction Line, 02-01-2021 in Discharge Line, 460 VAC, 5 hp, R-410A Refrigerant, 10.7 EER, POE-AK/DA, 3MA/SP32 Compressor Oil, 9.3 in L x 18.4 in H

        BTU Rating      :      54000 Btu/hr
        Voltage Rating      :      460 VAC
        Compressor Oil      :      POE-AK/DA, 3MA/SP32
        Refrigerant Type      :      R-410A
        Discharge Line Size      :      02-01-2021 in
        Suction Line Size      :      0.785 in
        Power Rating      :      5 hp
        EER Rating      :      10.7
        Dimensions      :      9.3 in L x 18.4 in H
        • General 3-lead single voltage, 6-lead part winding (575 V)
        • Internal inherent protection-one-protector use with contactor
        • Model variation
        • Digital modulation
