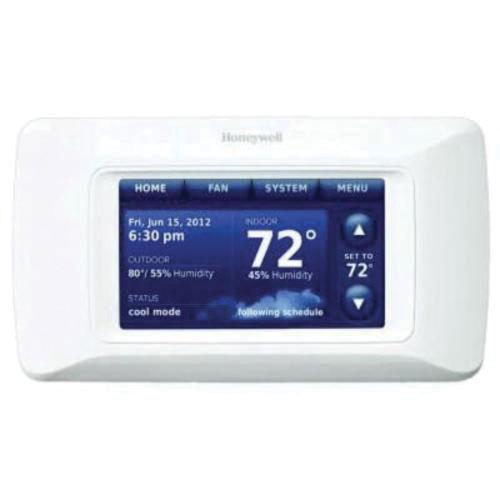

The Prestige IAQ 2.0 thermostat is a 2-wire high definition color touch screen thermostat, 7 day programmable, configurable for residential and light commercial, up to 4-heat / 2-cool heat pump and up to 3-heat / 2-cool conventional, controls humidification, dehumidification and ventilation, provides Delta T alerts and diagnostics, works with the equipment interface module and RedLINK accessories including the RedLINK internet gateway, portable comfort control, wireless outdoor sensor and wireless indoor sensor.

Honeywell Prestige Programmable Thermostat, 18 to 30 VAC, Programmability: 7 day Program, 3 Heat/2 Cool Stages, Switch Position: HEAT-OFF-COOL-AUTO (System), AUTO-ON-CIRC (Fan), 8.06 sq-in Tri-Lingual Display, 40 to 90 deg F Heat, 50 to 99 deg F Cool Settings, Terminal Designation: R, C then RedLINK to Equipment Interface Module, Arctic White, Dimensions: 3-15/16 in H x 6-7/8 in W x 1-1/2 in D

• Control heating, cooling and IAQ equipment with only 2-wires at the thermostat, heating, cooling and IAQ equipment wires to the equipment interface module
• Patented interview based programming and installer setup
• RedLink wireless communications
• Customizable service reminders allow dealers to remind their customers when its time to call for service, when their warranty is expiring and to provide customized alerts
• Configurable for residential and light commercial applications, meets commercial code and is title 24 compliant
• Light commercial - commercial language (occupied and unoccupied), schedule holidays and custom events, remote setback, economizer and time of day
• Delta T alerts and diagnostics informs customers when their system is not operating as expected with instructions to contact the dealer
• Provides a sense of security and greater comfort while generating repeat business
• All Prestige IAQ 2.0 systems come standard with a return and discharge air temperature sensor to measure delta T
• Alerts and user interactions log - keeps a searchable history of alerts and setting changes to the thermostat to determine if there is a system malfunction or if the issue was caused by a user error, saves time in troubleshooting and points the technician in the right direction, the alerts and user interaction Logs are viewable on a computer after you download them from the thermostat to a MicroSD card
• Increase profit per job by including Red LINK accessories that provide comfort and convenience, Red LINK accessories include the Red LINK internet gateway, portable comfort control (PCC), wireless outdoor sensor wireless indoor sensor TrueSteam humidifier with wireless adapter and TrueZone zoning panel with wireless adapter
• USB port for transferring installer setup, customizable reminders, custom events and holidays to multiple thermostats
• USB port for adding the dealer's full color business logo on the screen
• Three assignable outputs to control humidification, dehumidification, ventilation and a stage of heating or cooling
• Two assignable inputs can be used with wired sensors, remote setback or dry contact devices to trip pre-packaged or custom alerts such as a full drain pan or water leak
• Tri-lingual - english, french and spanish display options
• Precise temperature control (+/- 1 deg F) for reliable and consistent temperature
• Multiple staging options to provide comfort or energy savings
