Emerson 80 Series thermostats offer a footprint that fits the install, features that fit the homeowner and support that fits your business. With a large, backlit display, easy to use design, flexible programming and dependable performance, 80 Series thermostats are the perfect fit for every application.

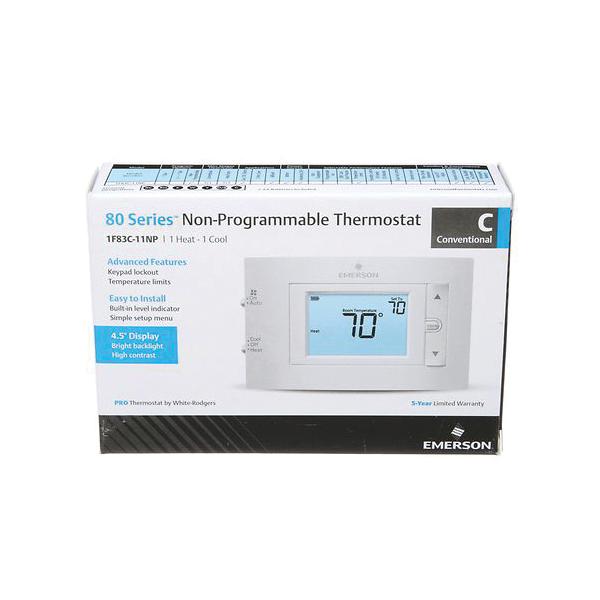

WHITE-RODGERS™ Non-Programmable Thermostat, 80 Series, Model: 1F83C-11NP, 20 to 30 V, 2.5 A, 50/60 Hz Frequency, Changeover: Auto, 1 Heat, 1 Cool Stages, Bright Backlight Display, 0.5 deg F Fast, 0.75 deg F Medium, 1.9 deg F Fast Differential, 45 to 99 deg F Settings, 32 to 105 deg F, 0 to 90 % Humidity, Battery, Hardwired Power Source, Dimensions: 3-3/4 in H x 6 in W x 1-1/8 in D, Additional Information: Horizontal Orientation, RC/RH/C/W/Y/OB/G Humidity Control, 4-1/2 sq-in Display, 30 VAC Battery Power
| Series | : | 80 Series |
| Model | : | 1F83C-11NP |
| Voltage Rating | : | 20 to 30 V |
| Amperage Rating | : | 2.5 A |
| Frequency Rating | : | 50/60 Hz |
| Changeover | : | Auto |
| Power Source | : | Battery, Hardwired |
| Stages | : | 1 Heat, 1 Cool |
| Display Type | : | Bright Backlight |
| Differential Temperature | : | 0.5 deg F Fast, 0.75 deg F Medium, 1.9 deg F Fast |
| Temperature Settings | : | 45 to 99 deg F |
| Temperature Rating | : | 32 to 105 deg F |
| Humidity Rating | : | 0 to 90 % |
| Dimensions | : | 3-3/4 in H x 6 in W x 1-1/8 in D |
| Additional Information | : | Horizontal Orientation, RC/RH/C/W/Y/OB/G Humidity Control, 4-1/2 sq-in Display, 30 VAC Battery Power |

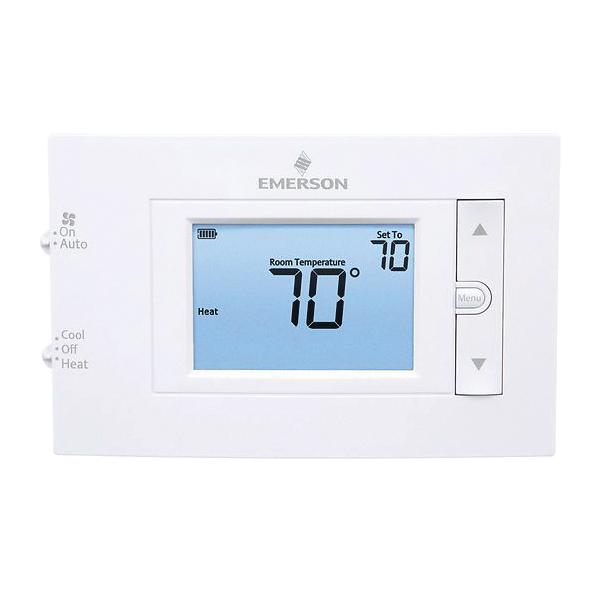

- Large display, bright backlight, high contrast screen
- Easy to install with built-in level, simple set-up menu and separate subbase
- Non-Programmable
- Dual fuel control, no outdoor sensor required, standard on all staging models
- Auto changeover on all universal models
- Keypad lockout and adjustable heat/cool temperature limits
- 5 year limited warranty for professionals
Instruction/Installation Manual
