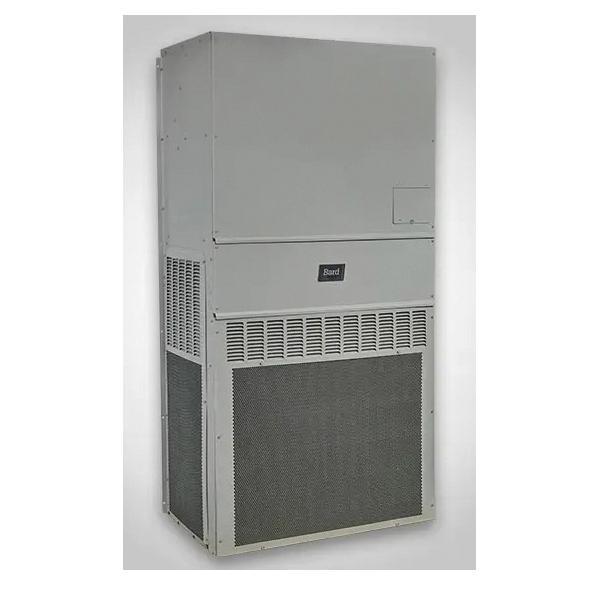

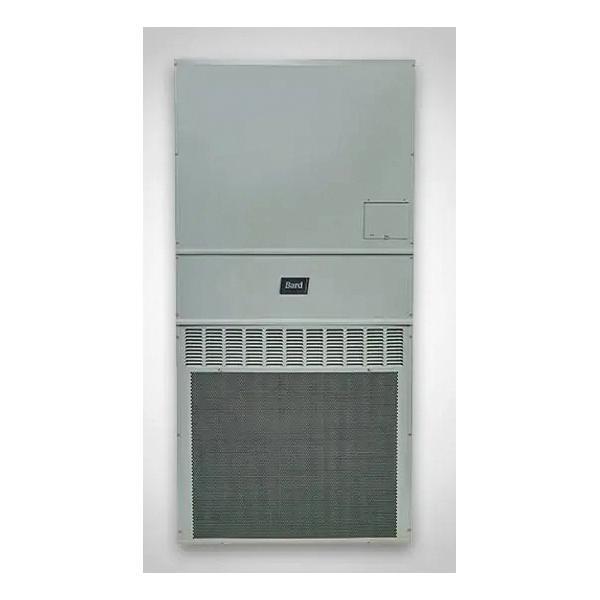

The world's most energy efficient wall-mounted air conditioner features a multi-step capacity compressor for increased efficiency, quieter operation and improved reliability. Simple thermostatic control seamlessly stages the compressor and indoor airflow rate between high and low capacity operations without cycling the compressor to maximize comfort, humidity control, energy efficiency and overall reduction in compressor cycling for improved system life. Factory or field installed accessories are available to meet specific job requirements.
Bard® Air Conditioner, Series: WSAC Series, Model: W5SAC, 5 ton Nominal Capacity, 57000 Btu/hr Cooling, 57000 Btu/hr Cooling BTU Rating, 460 V, 14 A, 1/3 hp Rating, 825 rpm Rotational Speed, 60 Hz, 3 ph, Scroll Compressor, Vertical Configuration, 2900 cfm Rating, 11 EER, 5 Speed, 2 Stage, R-410A, 66.8 dBA, Wall Mount, ECM Motor, 20 x 20 x 2 in Filter, 20 A Fuse, Alarm Relay, Low Ambient Control, Steel, Baked Enamel, Buckeye Gray, 0 to -40 deg F, 92.88 in H x 42 in W x 25.52 in D, Additional Information: Block Off Plate Vent Package, 2 in MERV8 Disposable Filter, Standard Supply Outlet, Standard Copper/Aluminum Coils
| Series | : | WSAC Series |
| Model | : | W5SAC |
| Cooling BTU Rating | : | 57000 Btu/hr |
| Nominal Capacity | : | 5 ton |
| Voltage Rating | : | 460 V |
| Amperage Rating | : | 14 A |
| Refrigerant Type | : | R-410A |
| Mounting Type | : | Wall |
| HP Rating | : | 1/3 hp |
| Cooling Capacity | : | 57000 Btu/hr |
| Rotational Speed | : | 825 rpm |
| Frequency Rating | : | 60 Hz |
| Phase | : | 3 ph |
| Compressor Type | : | Scroll |
| CFM Rating | : | 2900 cfm |
| Configuration | : | Vertical |
| Sound Level | : | 66.8 dBA |
| EER Rating | : | 11 |
| Number of Stages | : | 2 |
| Fuse Rating | : | 20 A |
| Motor Type | : | ECM |
| Temperature Rating | : | 0 to -40 deg F |
| Material | : | Steel |
| Finish | : | Baked Enamel |
| Color | : | Buckeye Gray |
| Dimensions | : | 92.88 in H x 42 in W x 25.52 in D |
| Additional Information | : | Block Off Plate Vent Package, 2 in MERV8 Disposable Filter, Standard Supply Outlet, Standard Copper/Aluminum Coils |
- Up to 15.2 IPLV cooling capacity
- 3-5 ton cooling capacity
- Single and three-phase power options
- Copeland step-capacity scroll compressor
- ECM indoor blower motor
- R-410A green refrigerant
- Aluminum finned copper coils
- Optional electric heat kits
- Optional ventilation alternatives
- AHRI Certified
- ETL Listed (US and Canada)
