50Hz and 60Hz One Ton units provide maximum indoor comfort at minimal cost, delivering energy efficiency, quiet operation and high durability. Factory or field installed accessories are available to meet specific job requirements.

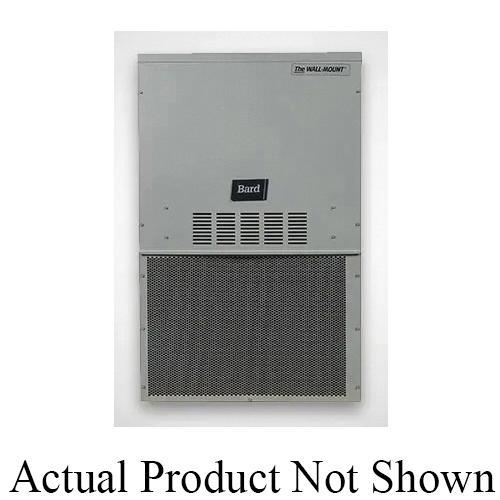

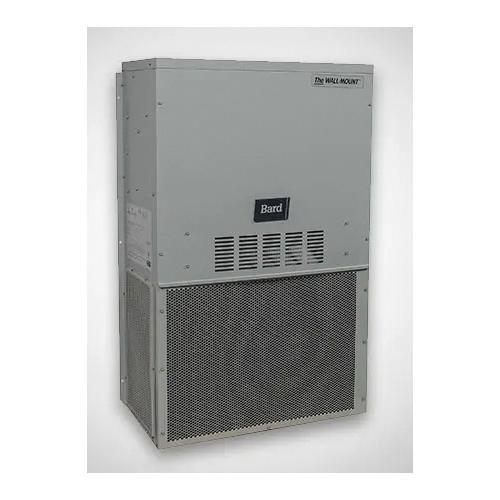

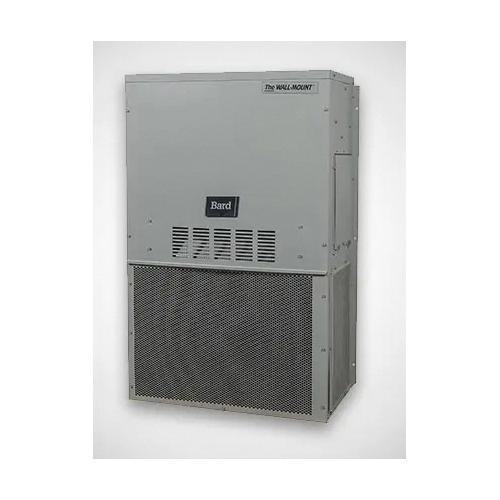

Bard® Air Conditioner, Series: WA Series, Model: W12AB-A, 1 ton Nominal Capacity, 13000 Btu/hr Cooling, 13000 Btu/hr Cooling BTU Rating, 230/208 V, 28 A, 5 kW, 1/12 hp Rating, 1075 rpm Rotational Speed, 60 Hz, 1 ph, Rotary Compressor, Vertical Configuration, 950 cfm Rating, 11 EER, 3 Speed, 1 Stage, R-410A, 65.2 dBA, Wall Mount, ECM Motor, 12 x 24 x 1 in Filter, 30 A Fuse, Alarm Relay, Low Ambient Control, Steel, Baked Enamel/Zinc-Coated, Desert Brown, 0 to -40 deg F, 48 in H x 14.6 in W x 30.1 in D, Additional Information: Blank Off Plate Vent Package, 2 in MERV8 Disposable Filter, Standard Copper/Aluminum Coils, Standard Supply Outlet
| Series | : | WA Series |
| Model | : | W12AB-A |
| Cooling BTU Rating | : | 13000 Btu/hr |
| Nominal Capacity | : | 1 ton |
| Voltage Rating | : | 230/208 V |
| Amperage Rating | : | 28 A |
| Refrigerant Type | : | R-410A |
| Mounting Type | : | Wall |
| Wattage | : | 5 kW |
| HP Rating | : | 1/12 hp |
| Cooling Capacity | : | 13000 Btu/hr |
| Rotational Speed | : | 1075 rpm |
| Frequency Rating | : | 60 Hz |
| Phase | : | 1 ph |
| Compressor Type | : | Rotary |
| CFM Rating | : | 950 cfm |
| Configuration | : | Vertical |
| Sound Level | : | 65.2 dBA |
| EER Rating | : | 11 |
| Number of Stages | : | 1 |
| Fuse Rating | : | 30 A |
| Motor Type | : | ECM |
| Temperature Rating | : | 0 to -40 deg F |
| Material | : | Steel |
| Finish | : | Baked Enamel/Zinc-Coated |
| Color | : | Desert Brown |
| Dimensions | : | 48 in H x 14.6 in W x 30.1 in D |
| Additional Information | : | Blank Off Plate Vent Package, 2 in MERV8 Disposable Filter, Standard Copper/Aluminum Coils, Standard Supply Outlet |
- 12,000 Btuh cooling capacity
- 1 ton capacity
- High-efficiency rotary compressor
- Quiet twin blowers
- Aluminum finned copper coils
- R-410A refrigerant
- Liquid line filter drier
Specification Sheet
