        Broan-NuTone® B110H65RS
        Send Print
        1. pin-int
        Broan-NuTone® B110H65RS

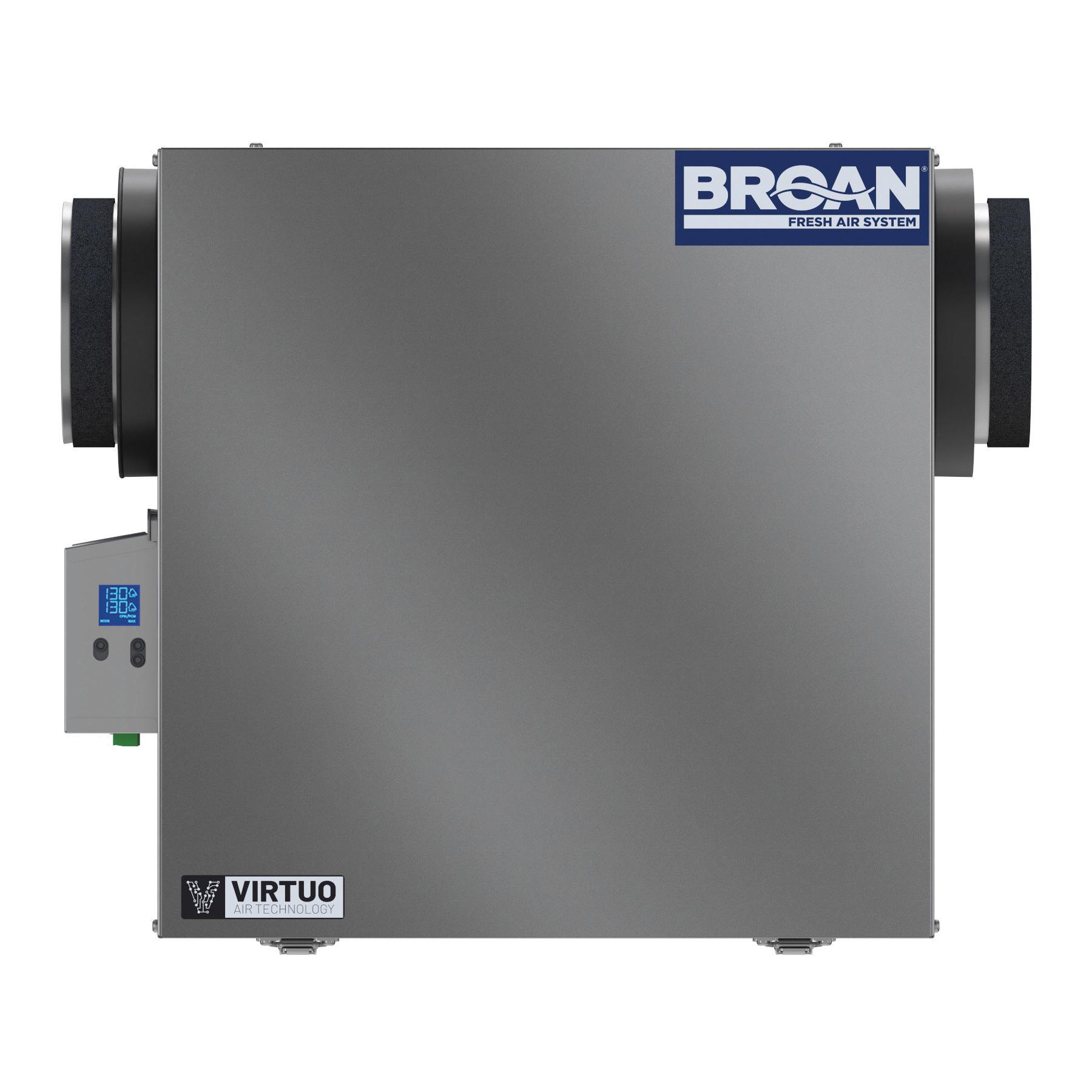

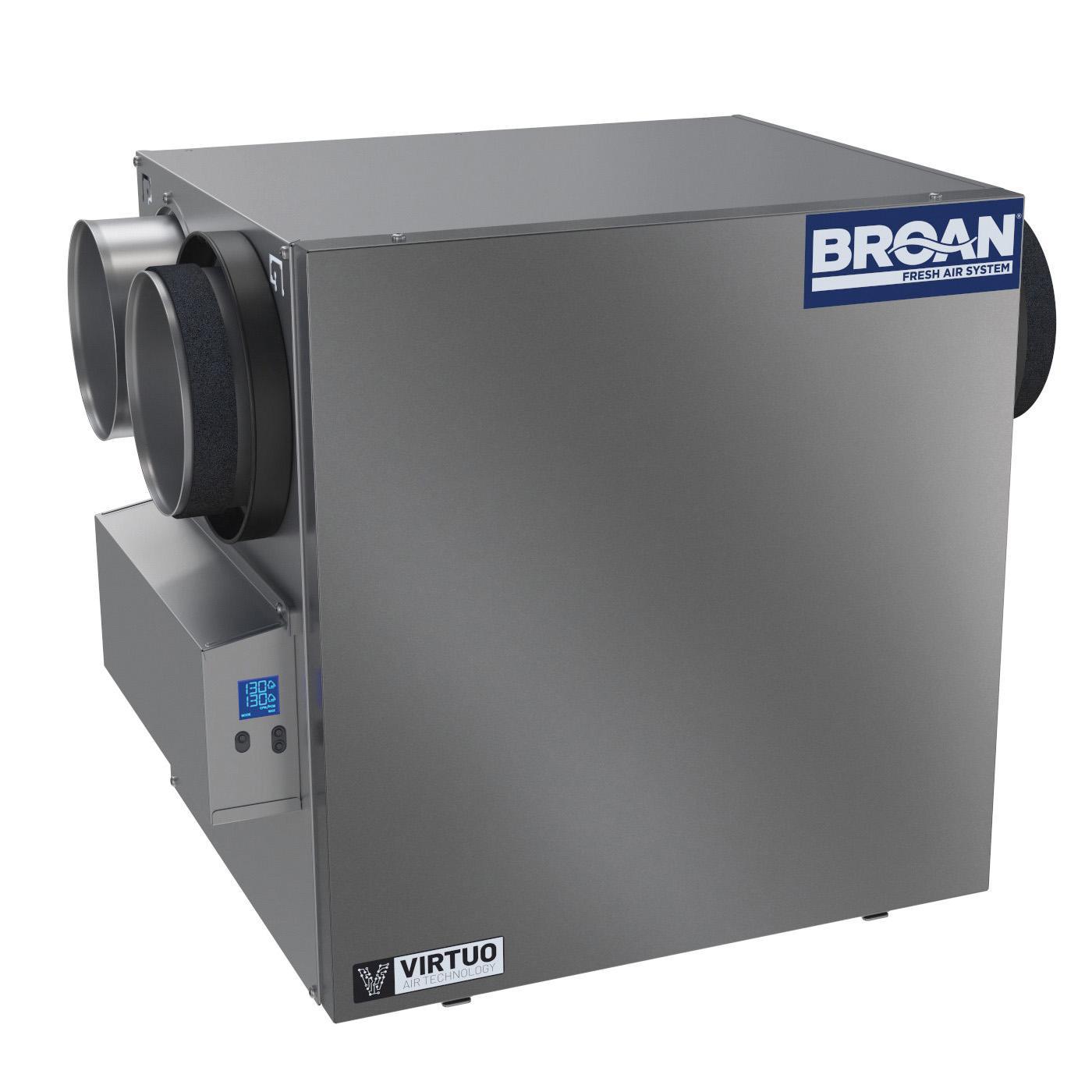

        Broan-NuTone® AI Series B110H65RS Heat Recovery Ventilator, 35 to 100 cfm Ai

        Broan-NuTone® B110H65RS

        A healthy home starts with fresh air. The BROAN® AI series is the most advanced residential fresh air system on the market. This unit features our VIRTUO™ air technology which is specifically designed to provide fresh air in any season and in any installation situation. Easy installation combined with auto-balancing means fresh, filtered, comfortable air without the need for specialized measurement tools or added install time.

        Broan-NuTone® Heat Recovery Ventilator, Series: AI Series, 35 to 100 cfm Air Flow Capacity, 2.4 A, 120 V, 60 Hz, 90 W, 23 deg F, 0.4 in-WG, 5 in Duct, 72 % Effectiveness, 68 % Temperature Recovery Efficiency, Wall Mount, Steel, Galvanized, 16.14 in Length, 23.78 in Width, 19.12 in Height, Import, Additional Information: Round Port, MERV 8 Filtration Level

        Series      :      AI Series
        Air Flow Capacity      :      35 to 100 cfm
        Amperage Rating      :      2.4 A
        Voltage Rating      :      120 V
        Frequency Rating      :      60 Hz
        Power Rating      :      90 W
        Duct Size      :      5 in
        Effectiveness      :      72 %
        Pressure Rating      :      0.4 in-WG
        Temperature Recovery Efficiency      :      68 %
        Material      :      Steel
        Finish      :      Galvanized
        Mounting Type      :      Wall
        Temperature Rating      :      23 deg F
        Length      :      16.14 in
        Width      :      23.78 in
        Height      :      19.12 in
        Domestic/Import      :      Import
        Additional Information      :      Round Port, MERV 8 Filtration Level
        • By continuously monitoring changing indoor and outdoor conditions, the AI series with VIRTUO™ air technology, provides fresh, filtered and healthy air throughout the home

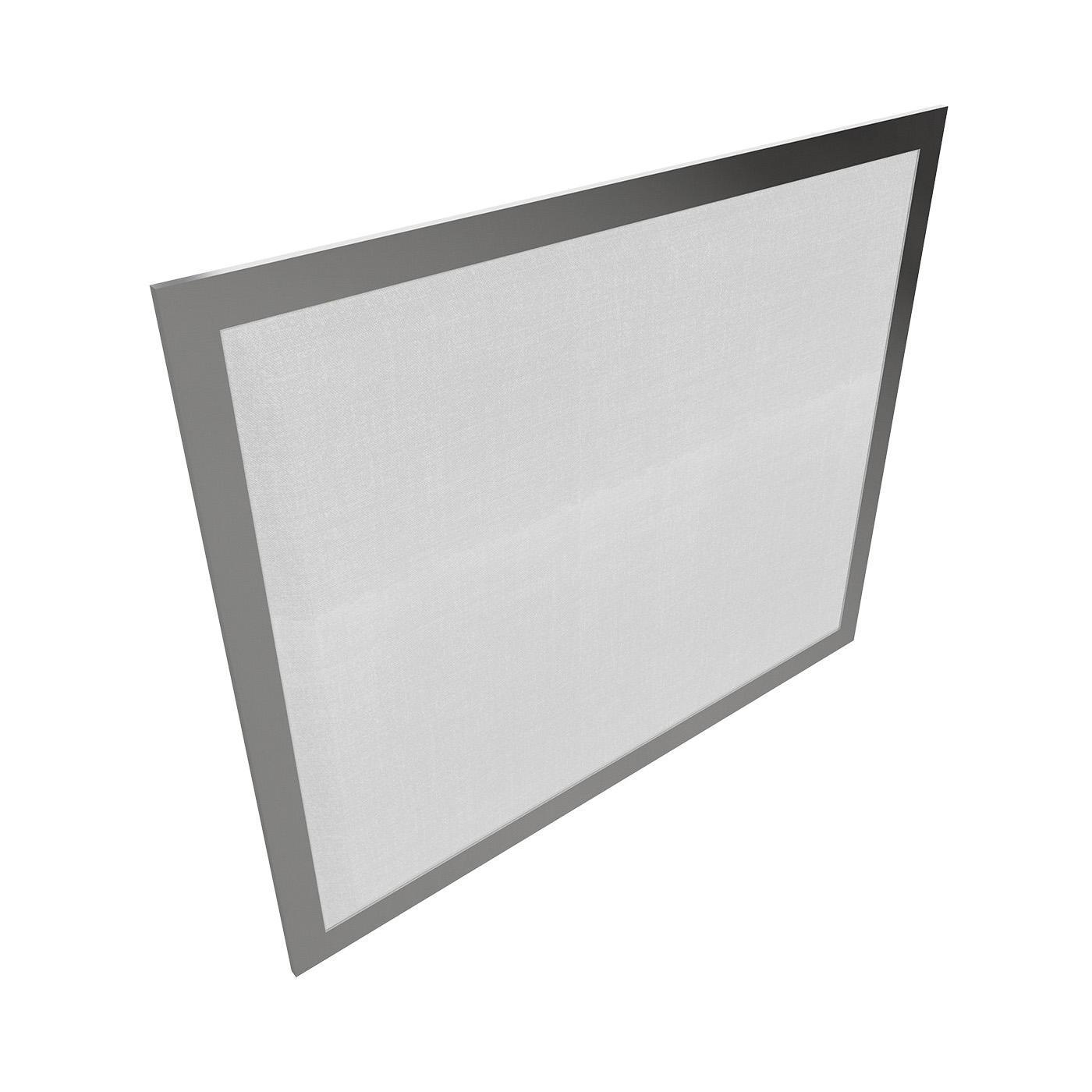

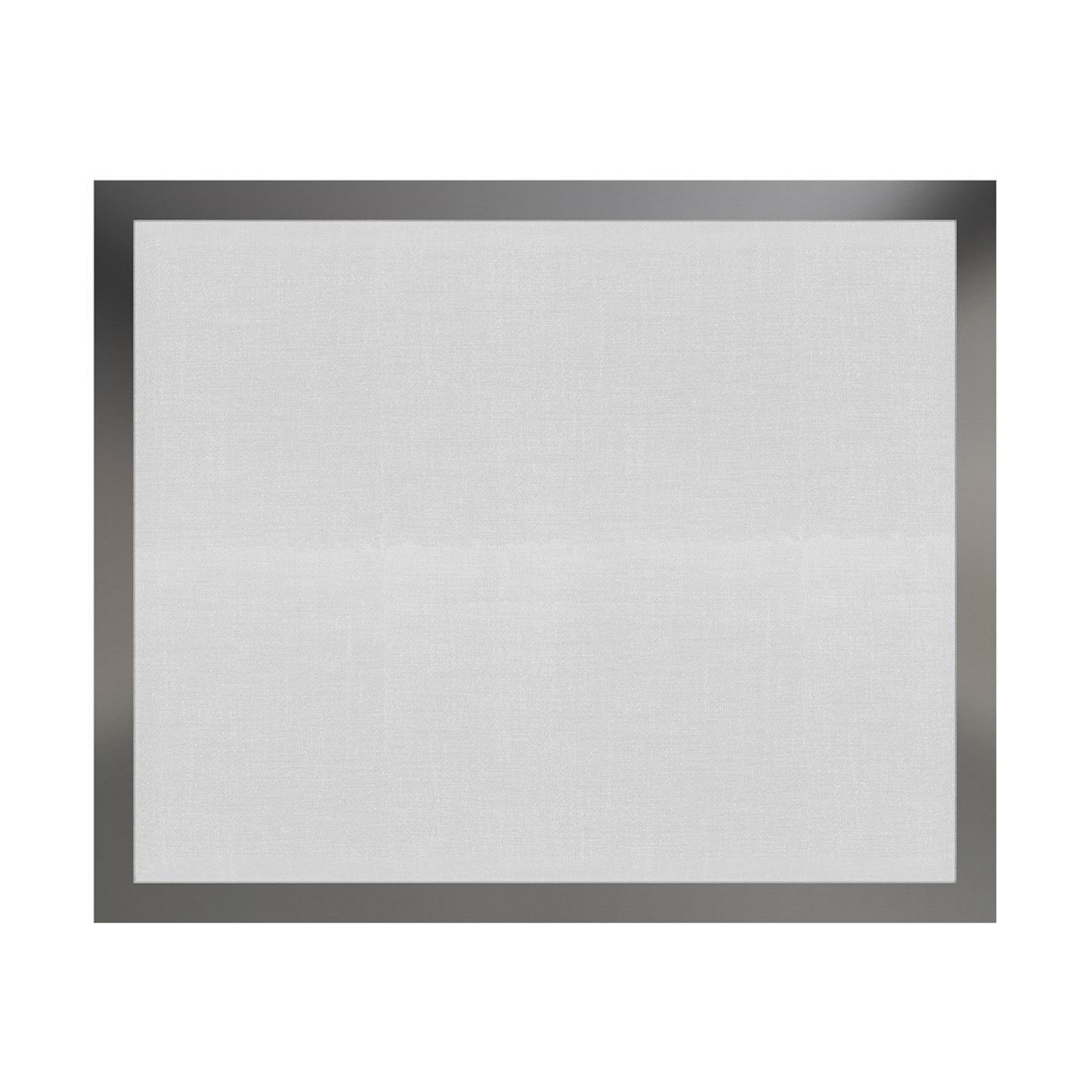

        • MERV 8 filters are installed standard
        • Capturing lint, dust, pollen, dust mites, debris and spores for superior air quality and comfort
        • Powerful, reliable and quiet PMSM ECM fan motors provide up to 60% energy savings compared to other units on the market
        • Developed on a compact, universal platform with several mounting and port options to save space and reduce install time
        • With a selectable airflow speed range from 35 to 110 cfm, this AI series model will meet the needs of a smaller home
        • Unit setup, balancing and diagnostics are made easy with complete control using the integrated LCD screen providing real time airflow measurements, automatic system balancing and simple diagnostic codes
