Shoemaker 350-8X14W

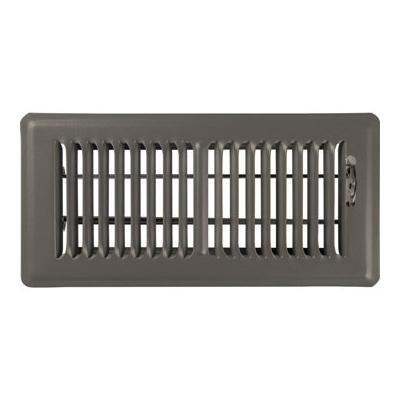

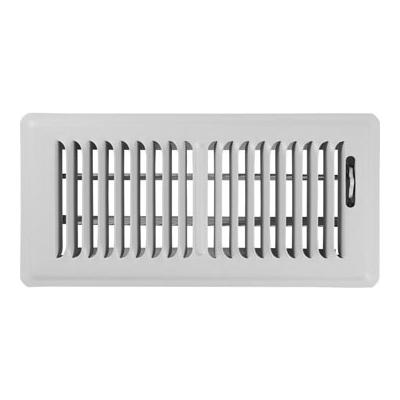

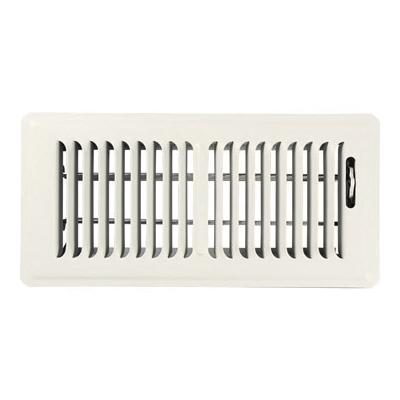

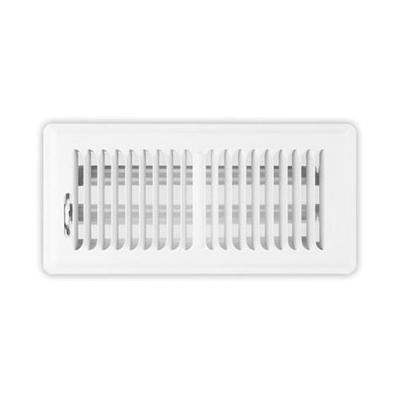

Shoemaker Floor Diffuser, Series: 350, 8 x 14 in, 523 cfm at 1000 fpm, 0.523 sq-ft, 2-1/4 in Length, 9-1/4 in Width, 15-1/2 in Height, Cold Rolled Steel, Powder Pre-Coated, Soft White
| Series | : | 350 |
| Size | : | 8 x 14 in |
| CFM Rating | : | 523 cfm at 1000 fpm |
| Area | : | 0.523 sq-ft |
| Length | : | 2-1/4 in |
| Width | : | 9-1/4 in |
| Height | : | 15-1/2 in |
| Material | : | Cold Rolled Steel |
| Finish | : | Powder Pre-Coated |
| Color | : | Soft White |
- Heavy gauge cold-rolled steel formed face
- Louvers designed with rolled rib for maximum strength and rigidity
- Unique fan-shaped air pattern lends to both heating and air conditioning applications
- Multi-shutter damper standard on 6 in Ws and larger
- Locking screw provision concealed beneath the floor for tamper-proof settings
- All component parts, rivets, linkage, and handle, enclosed in valve to assure trouble-free operation
