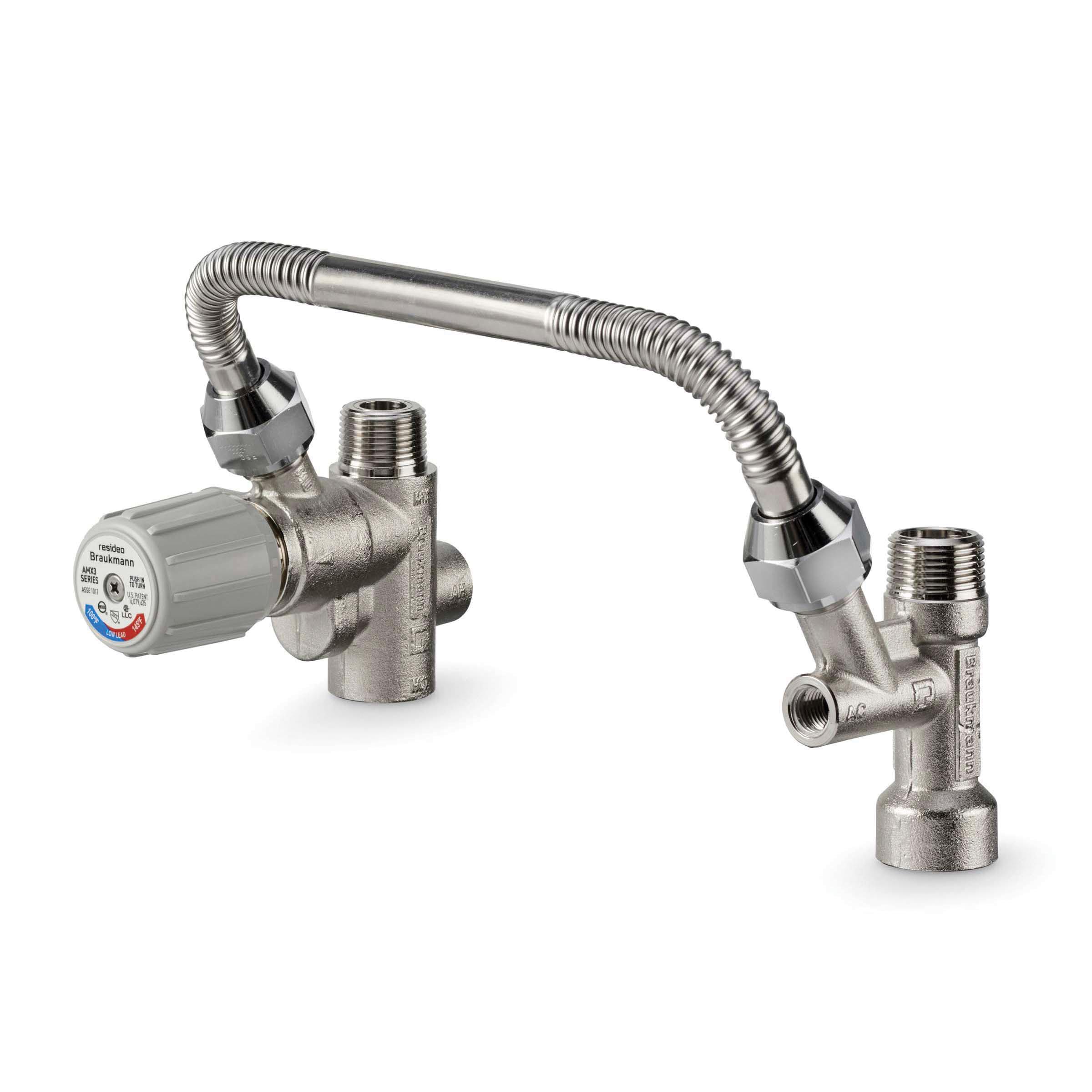

        resideo AMX300TLF/U

        resideo AMX300TLF/U Water Heater Kit, 3/4 in, FNPT x MNPT, 0.25 gpm, 150 psi, Br

        resideo AMX300TLF/U

        AMX300 series DirectConnect™ kits from resideo reduce installation time while providing industry leading mixing valve technology, which offers excellent temperature stability and control and minimizes scalding risk to building occupants.

        resideo Water Heater Kit, 3/4 in Nominal, FNPT x MNPT Connection, 0.25 gpm Flow Rate, 150 psi, 2.3 Cv Flow Coefficient (Cv), Brass, Finish: Nickle-Plated, Mixing Valve, Lead-Free

        Nominal Size      :      3/4 in
        Connection Type      :      FNPT x MNPT
        Flow Rate      :      0.25 gpm
        Flow Coefficient (Cv)      :      2.3 Cv
        Material      :      Brass
        Finish      :      Nickle-Plated
        Lead-Free/Contains Lead      :      Lead-Free
        Pressure Rating      :      150 psi
        • Temperature is adjustable using push-twist-release locking hand wheel design and if cold water supply is interrupted, flow reduction occurs in seconds
        • Kit (AMX300TLF or AMX302TLF) includes mixing valve, cold water tee fitting and flexible stainless steel connector, does not include adapters
        • Recirculation portion option offers fast delivery of heated water to the furthest fixtures, increasing user comfort with more available hot water
        • The alternate hot port bypasses hot water directly from the tank to non-mixed temperature applications
        • Brass/stainless construction with PTFE-coated wear surfaces for extended surface
