        Airzone AZAI6WSPFU2

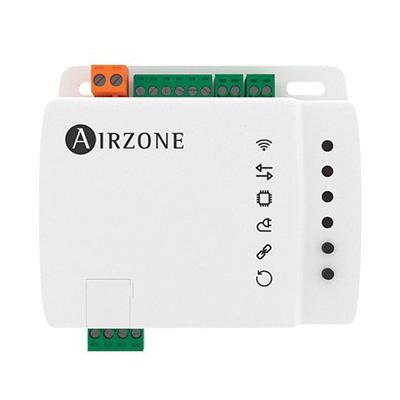

        Airzone AZAI6WSPFU2 Aidoo Pro Wi-Fi Controller, 2.5 m L Cable

        Airzone AZAI6WSPFU2

        Device for remote management and integration of units via Cloud services. Control via the Airzone Cloud app. Wireless network connection via Wi-Fi. Power supply at 100 to 240 V provided.

        Airzone Aidoo Pro Wi-Fi Controller, 18 V, 2 A, 2.4 to 5 GHz, 2.5 m Cable Length, 802.11a/b/g/n/ac Protocol, -4 to 158 deg F, 3.62 in Overall Length, 3.15 in Overall Width, 1.14 in Overall Depth, Additional Information: LBEE5HY1MW Model

        Voltage Rating      :      18 V
        Amperage Rating      :      2 A
        Frequency Rating      :      2.4 to 5 GHz
        Cable Length      :      2.5 m
        Protocol      :      802.11a/b/g/n/ac
        Temperature Rating      :      -4 to 158 deg F
        Overall Length      :      3.62 in
        Overall Width      :      3.15 in
        Overall Depth      :      1.14 in
        Additional Information      :      LBEE5HY1MW Model
        • Control of the different AC unit parameters
        • Communication via Wi-Fi dual (2.4/5 GHz)
        • Possibility of integration via local API and Cloud API
        • Detection of errors during communication
        • Time scheduling of temperature and operation mode
        • Multi-user and multi-session
        • Port for integration via Modbus/BACnet protocol
        • Cloud connection and/or integration with third party smart thermostats (3PTI)
        • Automatic mode change
        • Temperature limits for hot and cold
        • Auxiliary heat control
