        WHITE-RODGERS™ 49S25-707
        Send Print
        1. pin-int
        WHITE-RODGERS™ 49S25-707

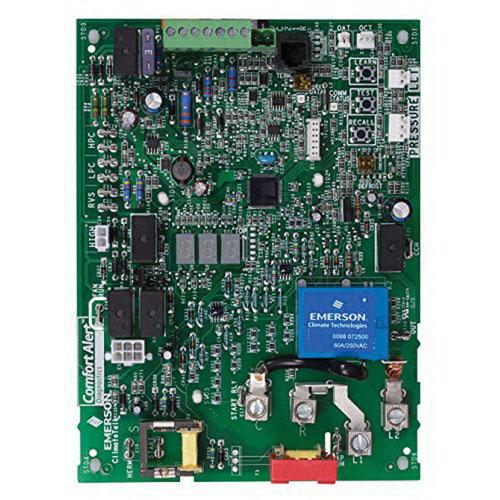

        WHITE-RODGERS™ 49S25-707 Unitary Air Conditioning/Heat Pump Control, 24 VA

        WHITE-RODGERS™ 49S25-707

        WHITE-RODGERS™ Unitary Air Conditioning/Heat Pump Control, 24 VAC, 200 A at 25 VAC, 60 Hz, Relay: 33.6 A Rated Load, 175 A Locked Rotor at 240 VAC Contact Rating, 180 s (Compressor Short Cycle Delay), 30 s (Compressor Minimum Run Time), 5 s (Cool Staging Time), 5 s (Heat Staging Time), 600 s (Maximum Defrost Cycle Time), 30/60/90/120 min (Compressor Run Time Until Defrost), 1 s (Outdoor Fan Off Delay) Time Delay

        Voltage Rating      :      24 VAC
        Amperage Rating      :      200 A at 25 VAC
        Frequency Rating      :      60 Hz
        Contact Rating      :      Relay: 33.6 A Rated Load, 175 A Locked Rotor at 240 VAC
        Time Delay      :      180 s (Compressor Short Cycle Delay), 30 s (Compressor Minimum Run Time), 5 s (Cool Staging Time), 5 s (Heat Staging Time), 600 s (Maximum Defrost Cycle Time), 30/60/90/120 min (Compressor Run Time Until Defrost), 1 s (Outdoor Fan Off Delay)
        • Two stage applications
        • PSC or ECM outdoor fan motor
        • Cuttable jumper configuration
        • Communicating or legacy 24 V systems
        • 7 segment system diagnostic LED
        • Load ratings - outdoor fan relay: 2.8 A rated load, 5.0 A locked rotor at 240 VAC, crankcase heater 0.5 A at 240 VAC, auxiliary heat: 1 A at 24 VAC, pilot duty, reversing valve: 1 A at 24 VAC, pilot duty, 0.5 A at 24 VAC, pilot duty
        • This control is designed to work as part of a fully communicating HVAC system using 4-wire or legacy 24 VAC inputs to support non-communicating systems
        • Drop-in replacement mounting
        • On board fuse
