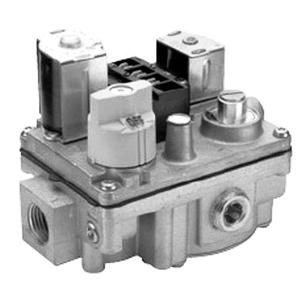

WHITE-RODGERS™ 36E98304
WHITE-RODGERS™ Gas Valve, 36E Series, 1/2 x 3/4 in Nominal, 0.5 psi Pressure, Direct Spark, Hot Surface, Proven Pilot Ignition, 0.54 A, 24 VAC at 60 Hz, 125000 Btu/hr for AGA Standard Natural Gas 1000 Btu/cu-ft, 202500 Btu/hr for AGA Standard LP Gas 2500 Btu/cu-ft at 1 in Pressure Drop Nominal, LP Gas, Natural Gas Fuel, -40 to 175 deg F Ambient
| Series | : | 36E Series |
| Nominal Size | : | 1/2 x 3/4 in |
| Voltage Rating | : | 24 VAC at 60 Hz |
| Pressure Rating | : | 0.5 psi |
| Temperature Rating | : | -40 to 175 deg F Ambient |
- Compact multifunction valves designed to meet the requirements
- Poppet-style manual valve (capable of withstanding high-inlet pressures)
- Conical inlet and outlet screens protected from pipe damage
- Direct acting solenoid valve with high-sealing force
- Controlled gasket clin between castings to withstand high-inlet pressures
- May be mounted horizontal, vertical and 90 deg from horizontal
- 3-9/16 in swing radius
- No step opening
