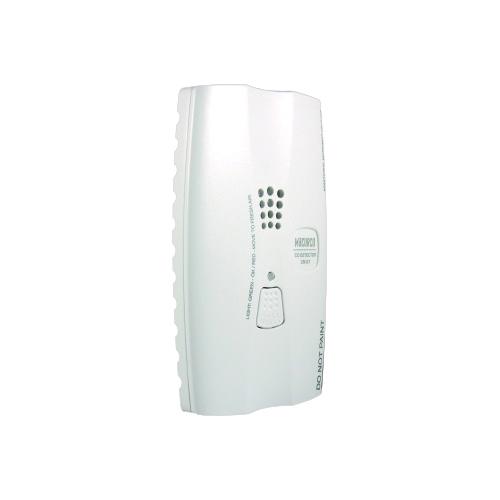

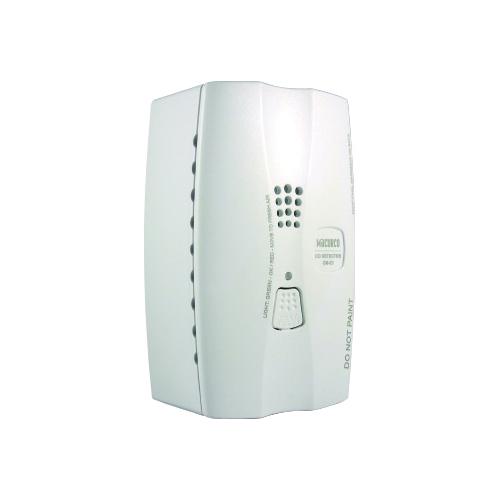

Macurco Gas Detection CM-E1
The CM-E1 is a low voltage detector of carbon monoxide (CO). The CM-E1 is designed for connection to UL listed fire alarm/burglary control panels. Alarm control panels that work on 12 or 24 VDC can provide battery backup to the CM-E1 detectors. This carbon monoxide detector is designed to detect CO gas from any source of combustion. It is not designed to detect smoke, fire or any other gas.
Macurco Gas Detection Macurco Carbon Monoxide Detector, 12/24 VDC Battery, 85 dBA at 10 ft, Wall/Flush/Surface Mount, Plastic, White, 40 to 100 deg F, 3-1/8 in Width, 5-1/8 in Height, 3-1/8 in D
| Power Source | : | 12/24 VDC Battery |
| Sound Level | : | 85 dBA at 10 ft |
| Temperature Rating | : | 40 to 100 deg F |
| Mounting Type | : | Wall/Flush/Surface |
| Material | : | Plastic |
| Color | : | White |
| Width | : | 3-1/8 in |
| Height | : | 5-1/8 in |
| Depth | : | 3-1/8 in |

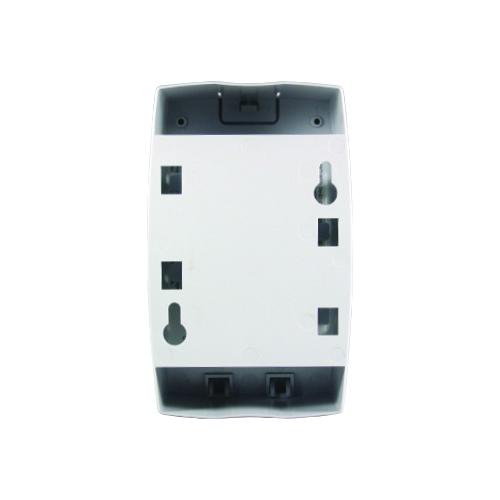

- Surface-mounts to a wall using the supplied enclosure rear housing
- Flush mounts in a 2 x 4 (1-1/2 in deep minimum) single gang switch, or handy electrical box
- Small, low profile, attractive unit in a white plastic case
- Detector alarms at multiple levels of exposure to carbon monoxide based on time weighted averages of the gas present
- Test and reset switch conducts internal tests and actuates alarm relay
- Highly linear electrochemical sensor
- NO or NC SPST alarm relay and NC SPST trouble relay to connect to alarm control panels
- Buzzer - produces repeating loud tone bursts during alarm, and chirps if sensor trouble is found
Instruction/Installation Manual
