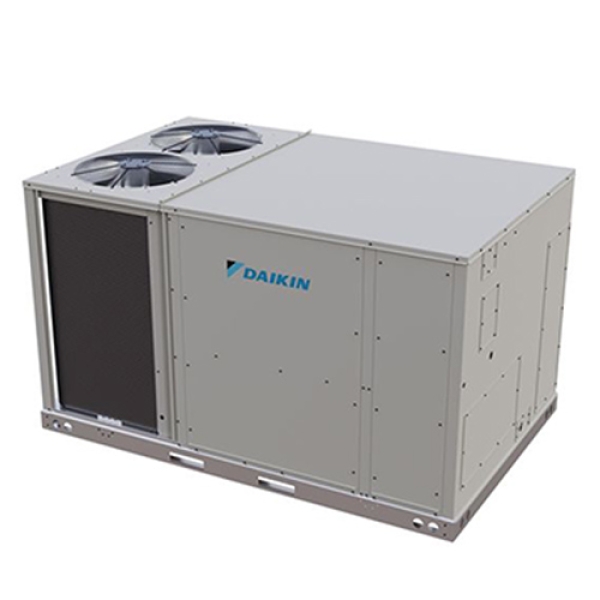

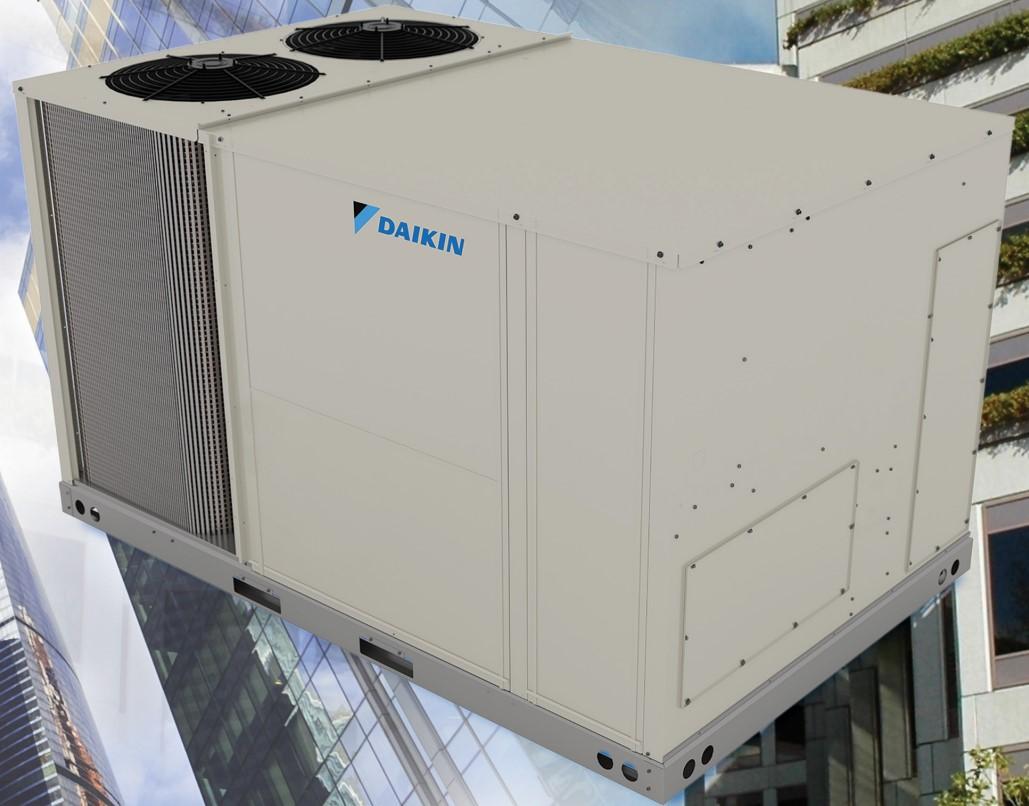

DAIKIN DSH0904D000001S
DAIKIN Packaged Heat Pump, Series: DSH Series, 7.5 ton Nominal Capacity, 86000 Btu/hr Cooling BTU Rating, 86000 Btu/hr Heating BTU Rating, 460 V, 20.1 A, 2.4 hp Rating, 60 Hz, 3 ph, 1600 rpm Rotational Speed, Scroll Compressor, 3000 cfm Rating, 16 IEER Rating, 11.4 EER, Standard Efficiency Configuration, NPT Connection Type, 3/4 in Connection, R-32, 1 Stage, 25 A Fuse, Direct Drive, 15 sq-ft Coil Rating, 16 FPI Fins per Inch, 20 x 25 x 2 in, 25 x 25 x 2 in Filter, Steel, Galvanized/Powder-Painted, 93-3/4 in L x 60-3/8 W x 53-5/8 in H, Additional Information: 3-Row
| Series | : | DSH Series |
| Cooling BTU Rating | : | 86000 Btu/hr |
| Heating BTU Rating | : | 86000 Btu/hr |
| Nominal Capacity | : | 7.5 ton |
| Voltage Rating | : | 460 V |
| Amperage Rating | : | 20.1 A |
| Refrigerant Type | : | R-32 |
| HP Rating | : | 2.4 hp |
| Rotational Speed | : | 1600 rpm |
| Frequency Rating | : | 60 Hz |
| Phase | : | 3 ph |
| Compressor Type | : | Scroll |
| CFM Rating | : | 3000 cfm |
| Configuration | : | Standard Efficiency |
| EER Rating | : | 11.4 |
| Number of Stages | : | 1 |
| Drive Type | : | Direct |
| Coil Rating | : | 15 sq-ft |
| Connection Type | : | NPT |
| Fuse Rating | : | 25 A |
| Fins per Inch | : | 16 FPI |
| Material | : | Steel |
| Finish | : | Galvanized/Powder-Painted |
| Dimensions | : | 93-3/4 in L x 60-3/8 W x 53-5/8 in H |
| Additional Information | : | 3-Row |
Specification Sheet
